Horizontal Steel Induction Billet Forging System

The steel billet forging system is an industrial equipment for heating round steel, round bars, square steel, and other billets. ROCHO INDUCTION can offer the continuous heating forging equipment of round steel production for metal heat treatment manufacturers.
Are you looking for an induction heating solution, please contact us here today.
All Solid-State IGBT Drive Circuit
ROCHO INDUCTION steel billet forging system adopts all solid-state IGBT frequency conversion control technology, IGBT drive circuit provide the quick heating speed to reduce oxidation and deformation of the steel billet, to provide more stable and better heating uniformity.
The Principle Of Induction Forging

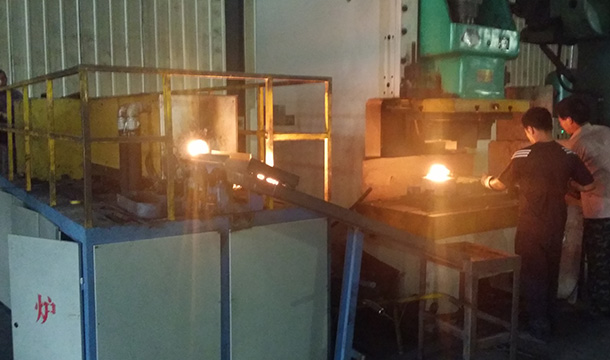

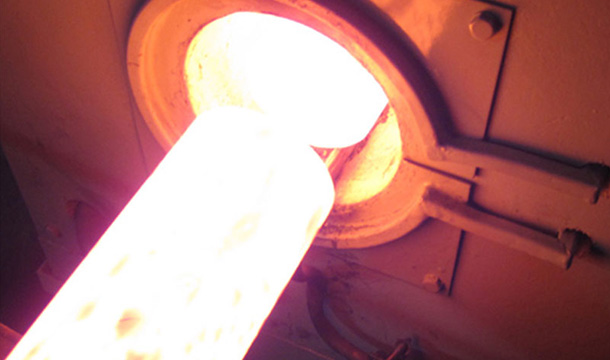

The steel billet induction forging system adopts the principle of medium-frequency electromagnetic induction heating. After the induction coil is energized, a magnetic field is generated, and magnetic lines of force cut metal bars such as steel bars, copper bars, iron bars, aluminum bars, etc., thus generating induced current, namely, eddy current, inside the bars.

The heat of induction heating generates induction current inside the bar, so the metal material is heated evenly and the temperature difference between the core and the surface is extremely small. The induced current enables the metal bar to be rapidly and evenly heated by reaching the required temperature in a very short heating time; so the surface of the heated bar is less oxidized with less workpiece deformation.

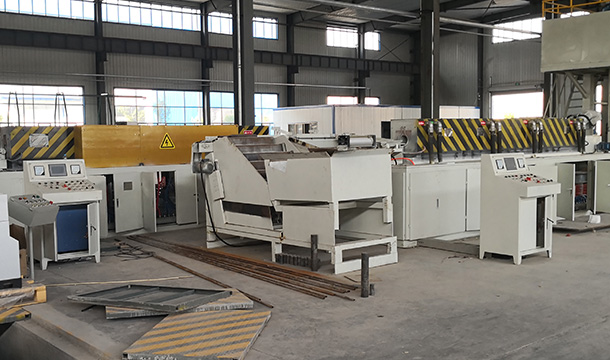

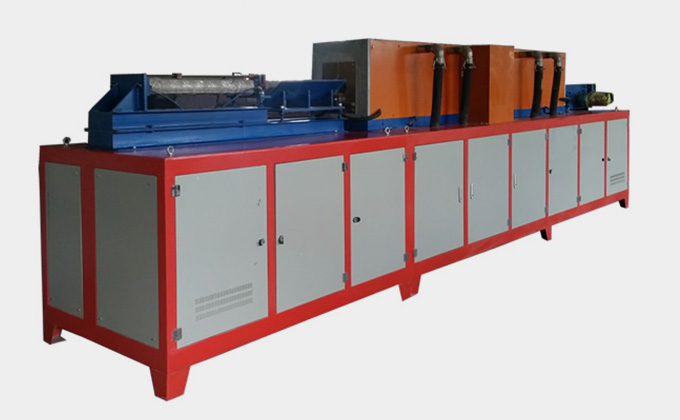

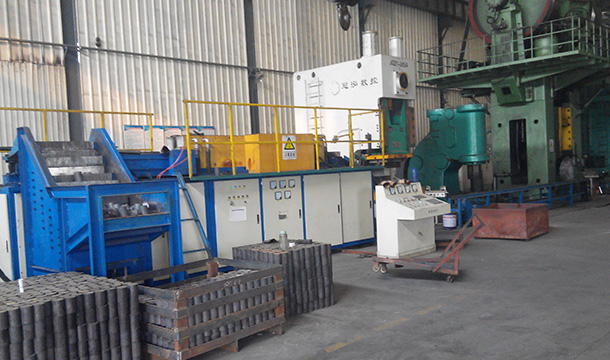

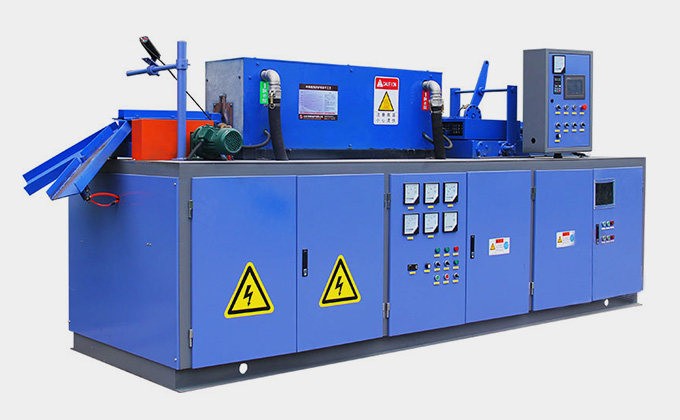

The Structure Of Steel Billet Forging System
The complete set of steel billet induction heating forging system consists of 12-pulse medium frequency induction heating power supply, medium frequency compensation capacitor, steel billet forging furnace, induction coil, PLC electrical control system, automatic feeding system, infrared thermometer and other main parts.
Induction Heating Power Supply
The steel billet induction heating forging system adopt medium frequency induction heating power supply, which has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.
PLC Automatic Control System
The steel billet induction forging furnace can be equipped with a PLC automatic control system to realize automatic feeding, automatic blanking, automatic completion of heating process, reducing labor costs, and high production efficiency.
Temperature Control System
The steel billet induction forging furnace is equipped with an infrared thermometer, which can set the heating temperature and accurately control the heating temperature through the PLC control system. When reaching the required temperature, the bar material will automatically convey to the next process for forging. The application of temperature control system can realize accurate control of temperature and improve product quality and qualified rate.

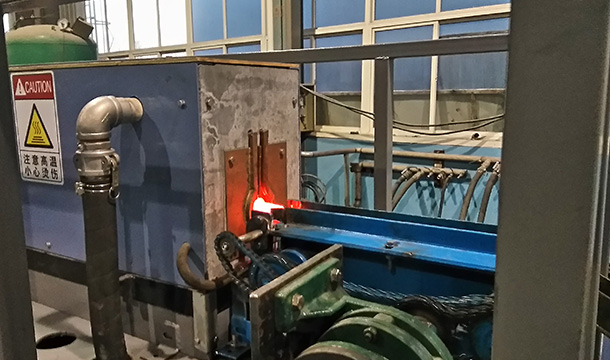

High Quality Forging Furnace
The induction coil inside of the steel billet induction furnace uses T2 copper tube with oxygen-free copper windings, and the furnace wall thickness is greater than 2.5 mm. The furnace lining is made of high-strength aluminum alloy, which can reduce magnetic flux leakage and increase the service life of billet induction heating equipment.
Save Material Cost
Compared with the traditional heating methods such as oil heating and coal heating, induction heating possesses fast heating speed, can continuously carry out forging tasks, does not waste heating blanks caused by power or equipment failure, and saves the cost of materials and forging dies, each ton of billet can save at least 20-50KG of steel raw materials.
Applications:
ROCHO INDUCTION specializes in the production of steel billet heating furnaces, steel rod continuous heating furnaces, and steel bar online heating forging equipment. We can offer customers with customized heating processes, and turnkey solution, including:
complete engineering design,
equipment manufacturing,
installation and commissioning,
operation training and maintenance.
Technical Specification
Power Frequency Transformer Capacity Secondary Voltage Rectifier Pulse Induction Coil Voltage  Power Consumption Steel billet size Heating Time Heating Temperature
800kW 500-8000Hz 630kVA 3*380V 6Pulse 800V 450kW·h/t 60*60*1200mm 30second ≤1250℃
1000kW 500-1000 Hz 1250kVA 660-380V 6Pulse 1200V 380kW·h/t 60*60*1500mm
60*60*1300mm
38second
38second
≤1250℃
1500kW 500-1000 Hz 1600kVA 660-380V 12Pulse 1200V 370kW·h/t 70*70*3000mm
60*60*3000mm
85second
65 second
≤1250℃
2000Kw 500-1000 Hz 2200kVA 660-380V 12Pulse 1200V 360kW·h/t 80*80*3000mm
70*70*3000mm
80second
60second
≤1250℃
3000kW 400-1500 Hz 3500kVA 950V 12Pulse 2800V 350kW·h/t 100*100*6000mm
80*80*6000mm
165second
110second
≤1250℃
5000kW 80-1500 Hz 6000kVA 1250V 12Pulse 2800V 340kW·h/t 130*130*6000mmm
120*120*6000mm
115second
110second
≤1250℃
8000kW 80-1500 Hz 10000kVA 1250V 24Pulse 2800V 320kW·h/t 150*150*600mm
130*130*6000mmm
110second
80second
≤1250℃
10000kW 70-1500 Hz 12500kVA 1500V 24Pulse 2800V 300kW·h/t 200*200*6000mm
150*150*600mm
145second
80second
≤1250℃
ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
