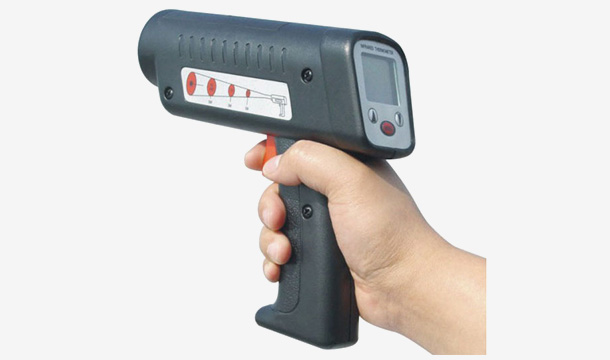

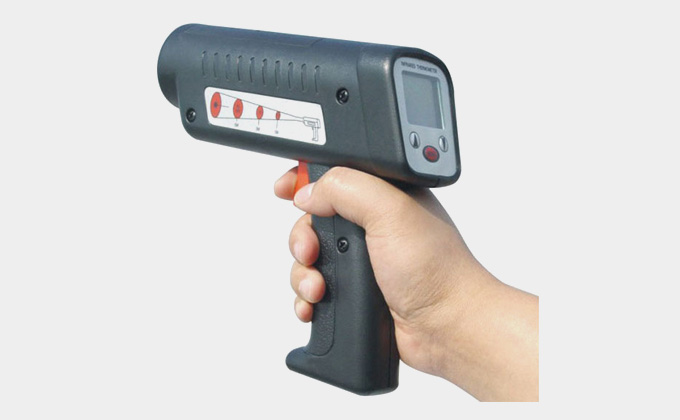

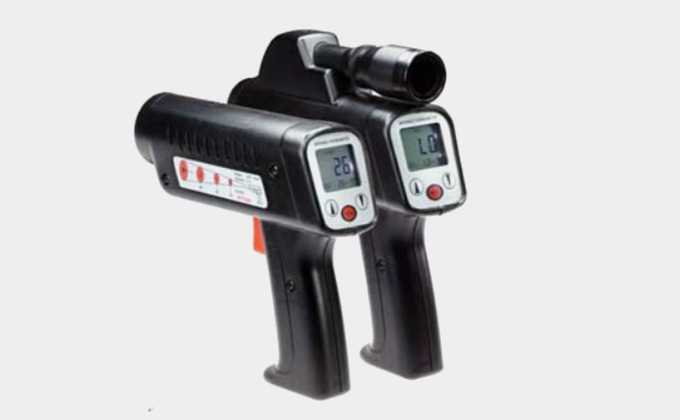

Handheld Infrared Thermometer

The handheld infrared thermometer is a kind of non-contact infrared thermometer that uses high-performance optical systems and photoelectric sensors to measure the temperature. The design pursues lightness and low cost. This series of instruments consumes less power and has full functions, making it an ideal choice for industrial users.

Send Email

Chat Now

Share With:

Quick Response

The handheld infrared thermometer can meet different needs in the range of 250°C-3000°C and has a high measurement accuracy and fast response speed. The aiming method is divided into coaxial laser aiming or telescope aiming, which can accurately measure the temperature of the target, stable repeated measurement, the response time is on the order of milliseconds or microseconds.

Working Principle

The temperature measurement principle is to convert the radiant energy of the infrared emitted by the object into an electrical signal. The magnitude of the infrared radiant energy corresponds to the temperature of the object itself. According to the magnitude of the converted electrical signal, the object can be determined temperature.

Application Industries

The handheld infrared thermometer use laser aiming, the laser can accurately measure the target temperature, which is safe and reliable. It can be widely used in metal processing industries to quickly and non-contact measure the surface temperature of the object.

Induction heating industry;

Continuous casting and rolling in the steel industry;

Melting, sintering, forging in the non-ferrous metal heat treatment industry;

Molten pool, melt liquid, wire drawing, and gobs in the glass industry.

Compact Design

The handheld infrared thermometer is light in design, novel in appearance, light in weight and easy to carry. LCD display, beautiful and generous. When you need a fast, simple and safe temperature measurement method, a handheld infrared thermometer is your best choice.

Customize Temperature Control System

ROCHO is committed to providing you with the best non-contact temperature measurement solutions to meet your applications and needs for induction heating and heat treatment industry.

Technical Specification:

Model	PT60A	PT60B	PT60C
Temperature Range	250℃~1800℃	600℃~2400℃	700℃~3000℃
Accuracy Of Measurement	±1% of reading value (ambient temperature 23℃±5℃)
Repeat Accuracy	±0.5% of reading value
Resolution	1℃ or 1℉
Response Time	Less than 100ms

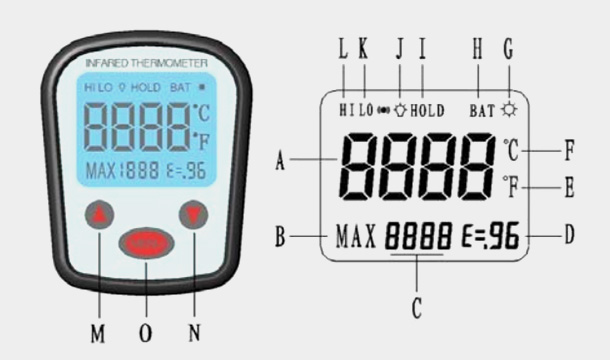

Display Mode	LCD display with backlight
Emittance	0.10～1.00 adjustable, step length: 0.01
Measurement Functions	Instantaneous value and max value/min value/average value/difference value, high/low temperature sound and light alarm, display hold, ℃/℉ conversion, 1000 sets of temperature data storage, data analysis software
Working Band	2.6μm	2.6μm	1.7μm
Distance Coefficient	150:1 (Standard type SF focus 1M, far focus type FF focus 5M, adjustable focus type DF focus 0.6-20M)

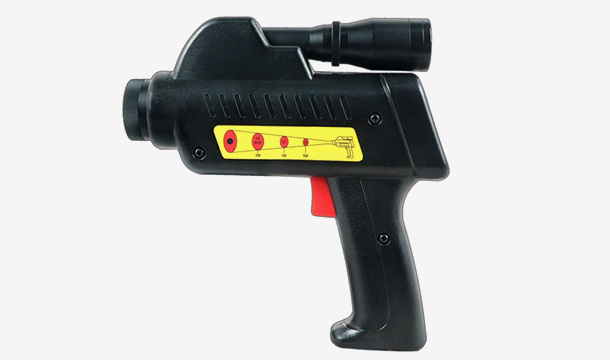

Sighting Method	Central laser or telescope aiming
Output	2.4GHz wireless data transmission
Operating Voltage	9V battery (6F22) 1 section
Working Current	Less than 22mA
Operating Temperature	-10℃～+60℃
Storage Temperature	-20℃～+60℃(without battery)
Relative Humidity	10%～90% RH non-condensing
Waterproof Rating	IP65
Instrument Volume	Laser sight type: 18017050mm; Telescope sight type: 18520050mm
Instrument Weight	Laser sight type: 500g; telescope sight type: 600g

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
