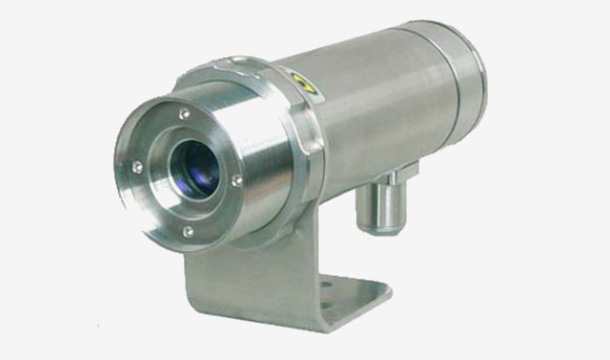

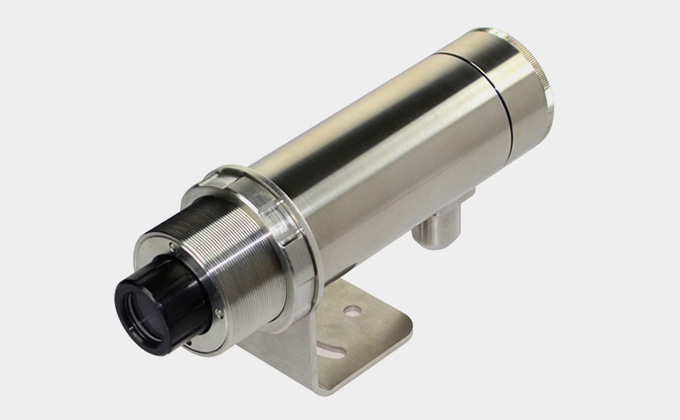

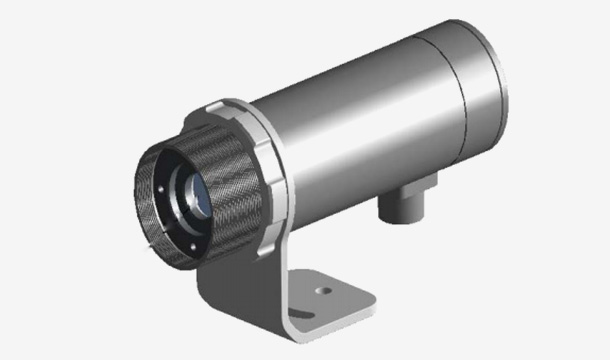

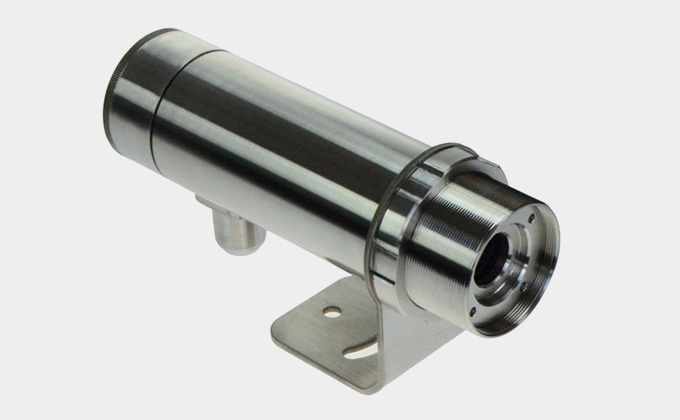

ST40 series on-line infrared thermometer is designed for use on the production line to measure the surface temperature of workpieces quickly and accurately from a safe distance. These infrared thermometers measure targets within a temperature range of 600°C to 3000°C at a ±1% level of precision.

Send Email

Chat Now

Share With:

Are you looking for an induction heating solution, please contact us here today.

High Measuring Accuracy

The online infrared thermometer is composed of optical system, optical signal conditioning, photoelectric sensor, signal processing circuit, microcomputer, digital display and data output. The unique design of the optical system and signal processing system makes the minimum measurable target of the ST40 series of on-line infrared thermometers reach 2mm. This outstanding performance will expand their applications.

Working Principle

The temperature measurement principle is to convert the radiant energy of the infrared emitted by the object into an electrical signal. The magnitude of the infrared radiant energy corresponds to the temperature of the object itself. According to the magnitude of the converted electrical signal, the object can be determined temperature.

Application Industries

The on line infrared thermometer use laser aiming, the laser can accurately measure the target temperature, which is safe and reliable. It can be widely used in metal processing industries to quickly and non-contact measure the surface temperature of the object.

Induction heating industry;

Continuous casting and rolling in the steel industry;

Melting, sintering, forging in the non-ferrous metal heat treatment industry;

Molten pool, melt liquid, wire drawing, and gobs in the glass industry.

Advantage

·Wide temperature range, 600℃～3000℃
·High measurement accuracy, ±1% of reading value

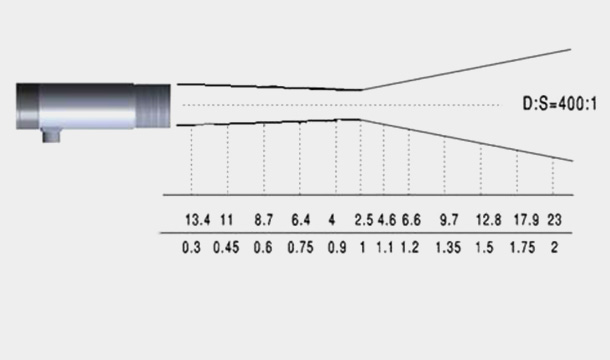

·Large distance factor, up to 400:1
·The smallest measurable target is ¢2.5mm
·IP65 protection grade

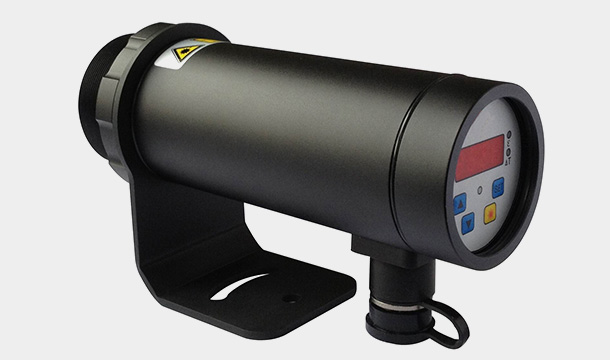

·Laser or telescope visual aiming

Customize Temperature Control System

ROCHO is committed to providing you with the best non-contact temperature measurement solutions to meet your applications and needs for induction heating and heat treatment industry.

Technical Specification:

Model	ST40A	ST40B	ST40C
Temperature Range	600℃～1800℃	800℃～2500℃	1000℃～3000℃
Accuracy Of Measurement	±1% of reading value
Repeat Accuracy	±0.5% of reading value
Resolution	1℃
Response Time	Less than 50ms

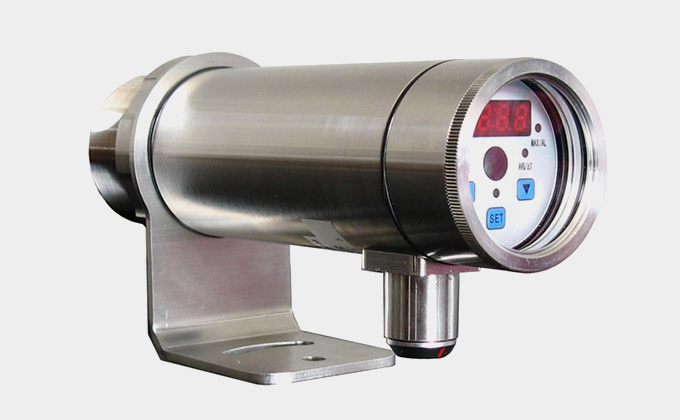

Display Mode	LCD display with backlight
Emittance	0.10～1.00 adjustable, step length: 0.01
Display	Instantaneous value, maximum value, average value
Working Band	1.0μm
Distance Coefficient	400:1
Sighting Method	Telescope aiming
Power Supply	24V DC±10% 100mA
Output	4～20mA, RS485
Operating Voltage	9V battery (6F22) 1 section
Working Current	Less than 22mA
Operating Temperature	-10℃～+60℃, water cooling 150℃
Storage Conditions	-20℃～60℃
Relative Humidity	10%～90% RH non-condensing
Waterproof Rating	IP65
Shell Material	Stainless steel
Instrument Volume	167mm×Ф50mm
Instrument Weight	600g

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
