Crankshaft Hardening system

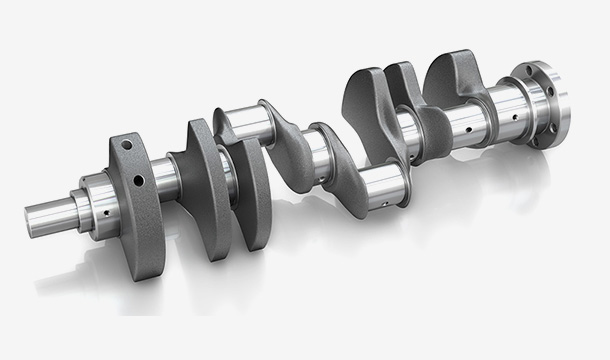

The crankshaft is the most important part of the engine. ROCHO induction crankshaft hardening system provides enough strength and toughness for the crankshaft to make the journal surface wear-resistant, which promises the work uniformly and good balance.
Are you looking for an induction heating solution, please contact us here today.
Crankshaft Technology Process
The machining process of crankshaft is: forging→ normalizing→ mechanical processing→ stress relief annealing→ tempering treatment→ surface heat treatment. Surface heat treatment include high-frequency hardening and low-temperature tempering process. Through these two heat treatment processes, the hardness and wear resistance of the crankshaft surface can be increased. The hardening and tempering hardness can be accurately controlled at 50-55HRC.
Crankshaft Hardening Capacity
The crankshaft hardening system can process different position of various crankshafts, such as fillet hardening, bearing hardening and round corner hardening, the length range is between 500-1500mm.
Crankshaft Hardening System

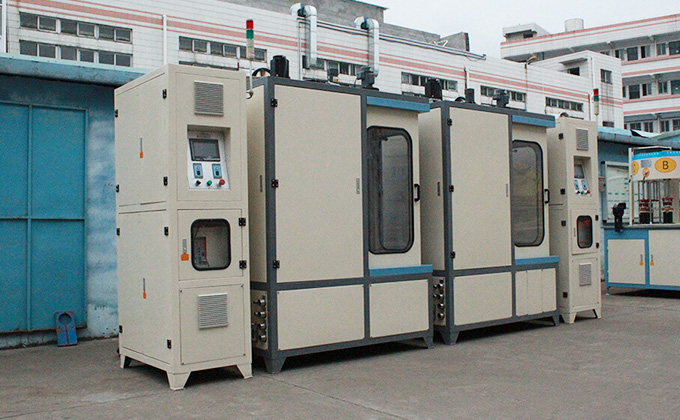

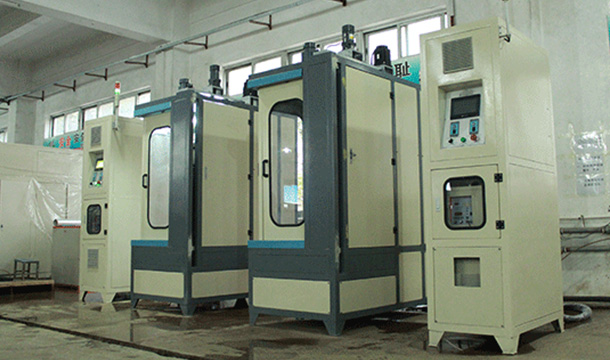

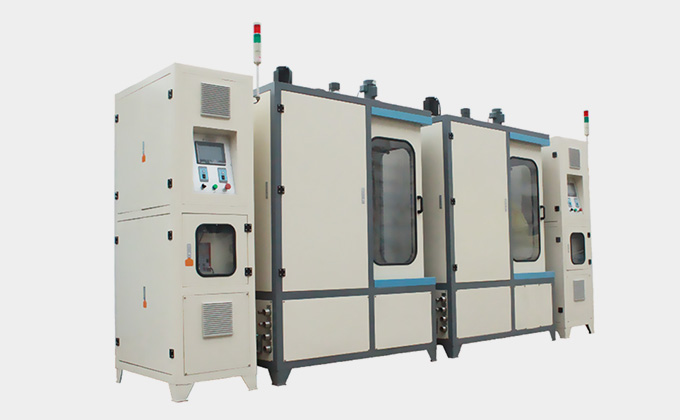

The crankshaft hardening system mainly includes: crankshaft hardening machine tool, IGBT medium frequency induction heating power supply, hardening liquid circulating cooling system, pure water cooling circulating system, PLC electrical control system, chiller, etc.

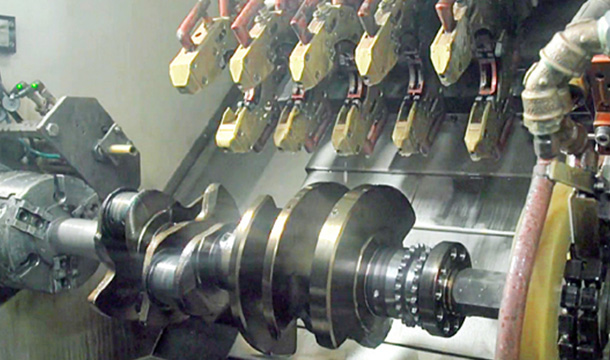

The crankshaft hardening system adopts an integral welded lathe bed, which has good rigidity, thermal stability and vibration resistance. The lathe tool adopts a pneumatic self-centering power chuck, which can automatically clamp the work piece, and the tailstock can automatically move on the guide rail to adapt to different size of crankshafts;
The crankshaft hardening system adopts IGBT induction heating power supply, which has high power efficiency, low failure rate and high startup success rate. It has a full set of protection functions and alarm functions; when hardening the connecting rod shaft, the power supply can adjust power automatically, to ensure that the hardened layer of the journal is even;

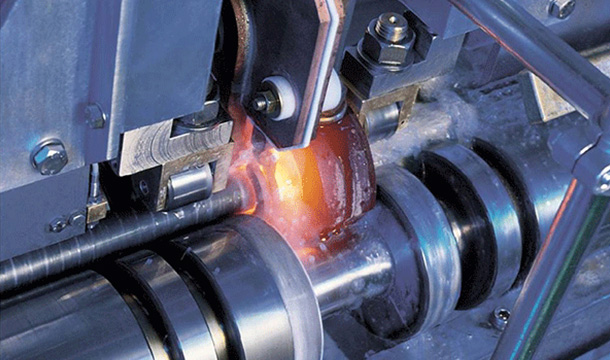

The lifting system of the induction coil is driven by a brake cylinder and equipped with a buffer device; each hardening transformer is independently suspended, and the spacing between adjacent transformers is adjusted by manual screw to adapt to different sizes of crankshafts, to ensure that the induction coil can track well and the pressure on the crankshaft is minimized, and the hardening deformation of the crankshaft is reduced;
The cooling system adopts soft water circulation cooling process, which can provide low-pressure cooling for the induction heating power supply, and high-pressure cooling for the hardening system and induction coil. Each cooling circuit is equipped with temperature, pressure and flow monitoring and protection devices.
PLC Control System
The crankshaft hardening control system can choose Siemens PLC touch screen and other control systems available, allowing operators to use touch screen to set various process parameters (including voltage, current, heating time, cooling time, heating power, frequency, spray flow, etc. ) , with high control accuracy and automaticity.
Applications:
ROCHO technical team specializes in design and build of induction heating power supply, high-frequency hardening equipment and fully automatic hardening and scanning system. It is widely used in heat treatment industry and can be used for hardening of various work pieces, such as:
1. Gear induction hardening
2. Crankshaft induction hardening
3. Cylinder liner induction hardening
4. Shafts & rods induction hardening
5. Guide rails induction hardening
6. Ball pin induction hardening
7. Bolts and fastener induction hardening
8. Concrete pump tube inner wall induction hardening
Technical Specification:
Model Power Output Parts Length Max Rotate Diameter Parts Weight Scanning
Length
Dimensions
(L*W*H)
QZCH50 50kW 500mm 15-200mm 50kg 500mm 1300*1400*1600mm
QZCH100 100kW 1000mm 30-400mm 150kg 1000mm 1700*1500*2300mm
QZCH120 120kW 1200mm 35-400mm 150kg 1200mm 1700*1500*2300m
QZCH150 150kW 1500mm 50-400 mm 300kg 1500mm 1700*1500*2550mm
QZCH200 200kW 2000 mm 50-500 mm 500kg 2000mm 1800*1800*4800mm
QZCH250 250kW 2500 mm 60-500 mm 500kg 2500mm 1800*1800*5800mm
Power Supply 380-480V, Three phase, 50Hz/60Hz
Work Piece Type Induction hardening of various crankshafts, sprockets, various mechanical shafts, spline shafts, pin shafts, etc.
Duty Cycle 100%
Cooling Way Water cooling
Water Temperature The device alarms when the water temperature exceeds 40 °C.
Cooling Way Closed circuit cooling system, air chiller, water chiller (Available)
Hardening Medium Water, oil, salt, alkali, etc.
Hardening Way Semi-automatic, Full automatic.
Upgraded CNC system or PLC control system
Protection Function Over voltage, over current, short circuit, water shortage,
phase loss, water temperature alarm, etc.
Warranty One year technical support and service
ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
