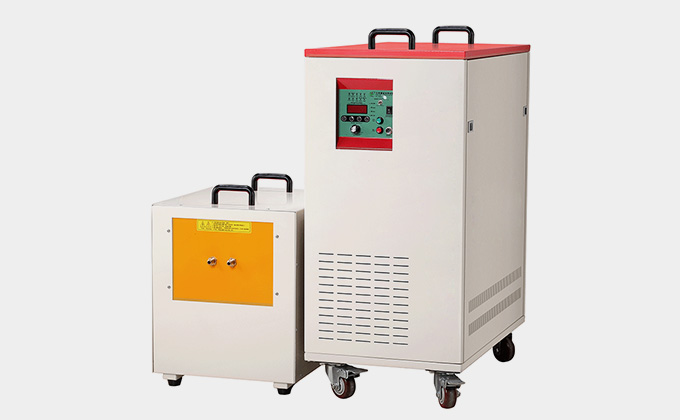

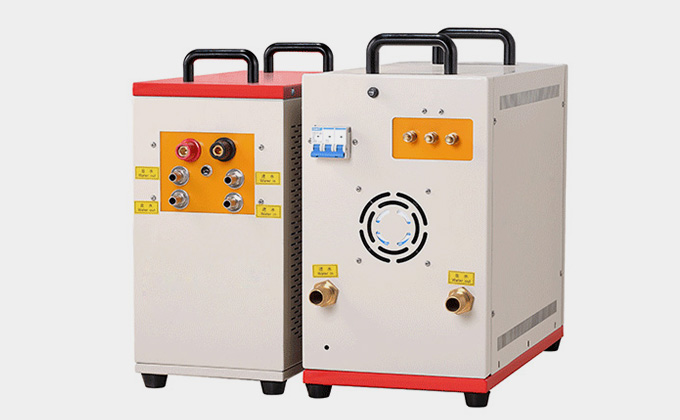

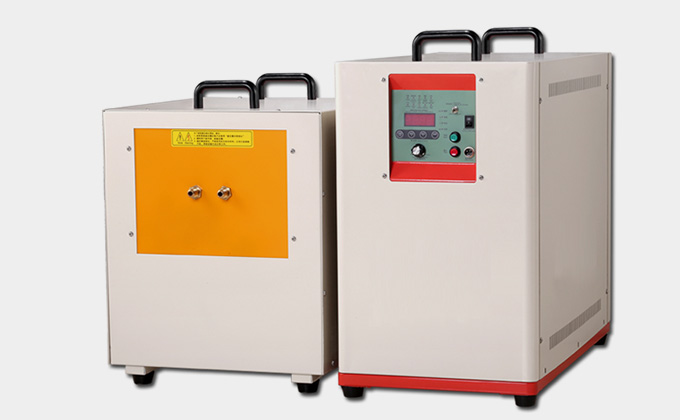

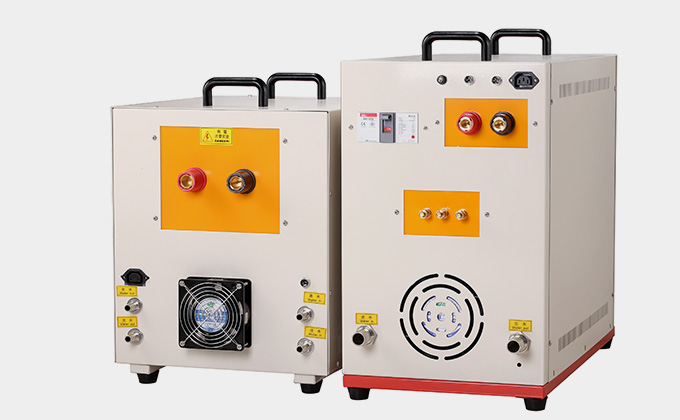

MF induction heating power supply

ROCHO medium frequency induction heating power supply is a new generation of metal induction heating equipment. It utilizes medium frequency power supply technology, which allows for continuous and stable operation for 24 hours with a constant output power, even reaching the maximum power at 100% load. The medium frequency power supply has a strong ability to adapt to various loads and has a wide range of applications, mainly used for processes such as metal material heat penetration, melting, welding, quenching, tempering, and heat treatment.

Send Email

Chat Now

Share With:

High Power Output Induction Heating

The ROCHO medium-frequency induction heating power supply utilizes advanced all-solid-state IGBT frequency conversion technology with power regulation functionality. Its constant power output ensures maximum utilization of the power transformer, while a parallel resonant circuit, digital phase lock technology, and automatic frequency tracking adaptation ensure high power efficiency and an extremely high-power factor across the full range of power outputs. This results in a more stable and uniform heating experience, providing greater consistency and efficiency in heating applications.

Versatile& Flexible Frequency Configuration

Our medium-frequency induction heating power supplies are available in a range of power outputs and can be matched with frequencies from 1kHz to 10kHz, ensuring flexibility to meet the specific needs of our customers. Our team of engineers takes into account various factors such as heating depth, efficiency, and location to design the most suitable working frequency range, resulting in optimal heating effects.

These versatile power supplies are particularly useful for deep heating of metal workpieces, including hardening of large parts, hot forging of bars, metal melting, full tempering of dies, and preheating before welding.

Comprehensive Protection Features

ROCHO medium-frequency induction heating power supplies are equipped with multiple protection functions, including over-current, water shortage, over-heat, over-voltage, short-circuit, phase failure/loss protection, and other alarm functions. These features automatically trigger alarms in case of faults, greatly improving the reliability of the equipment.

The display screen provides various data, including current, voltage, and time displays, allowing for easy visualization of the equipment's working conditions.

The medium-frequency induction heating power supply can be equipped with infrared thermometer to realize automatic temperature control and improve heating quality along with temperature control accuracy.

The medium-frequency induction heating power supplies can be equipped with a PLC control system, allowing for seamless integration with the flow process of an automatic production line.

The medium-frequency induction heating power supplies can be equipped with a fully enclosed internal circulation water cooling system. If the water temperature exceeds safe operating limits, the induction heater automatically triggers an alarm and stops operation, ensuring the safety and reliability of the equipment.

Sustainable Eco-Friendly Induction Heating

The medium-frequency induction heating power supplies provide fast melting speeds, high efficiency, and reduced combustion of material elements when used for melting non-magnetic materials such as stainless steel, copper, industrial silicon, and aluminum. This results in less waste of raw materials and reduced costs compared to traditional heating methods. Additionally, our power supplies offer advantages such as higher efficiency, less pollution, and lower energy consumption, resulting in energy savings of over 20%. This not only promotes a healthier and improved working environment but also enhances the company's image and enables a non-polluting production process with lower energy consumption.

Applications:

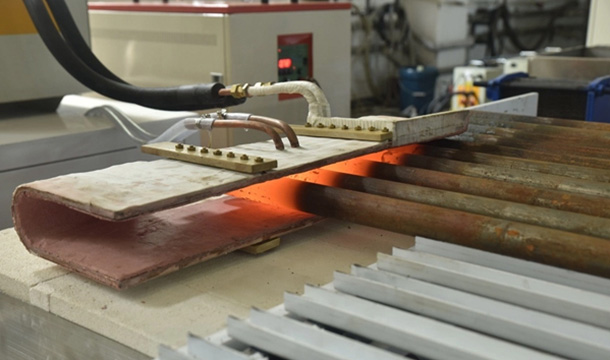

Our medium-frequency induction heating power supply is highly efficient, fast, precise, and suitable for automatic production. It is widely used in various industries including smelting, forging, pipe bending, and surface heat treatment. It excels in diathermanous forging applications such as heating forging of bolts and nuts, local heating of steel bars, and hot forging of railway accessories.

Additionally, it can provide hardening heat treatment for automobile parts like gears, shafts, and crankshafts, as well as weld preheating and post-weld tempering.

Technical Specification:

Model	Output	Frequency	Current	Weight	Dimensions(LWH)
MF-25	25kW	1-20kHz	200-1800A	37.5/32.5KG	640280550mm 510260410mm
MF-35	35kW	1-20kHz	400-1800A	37.5/32.5KG	640280550mm 510260410mm
MF-45	45kW	1-20kHz	400-2400A	54/42.5KG	780370620mm 560295470mm
MF-70	70kW	1-20kHz	400-3500A	80/60KG	725600900mm 670420500mm
MF-90	90kW	1-20kHz	400-4000A	90/65KG	750600900mm 670420500mm
MF-110	110kW	1-20kHz	400-4500A	100/65KG	1000600900mm 700420600mm
MF-160	160kW	1-20kHz	400-6500A	120/75KG	1000600900mm 700420600mm
MF-200	200kW	1-20kHz	400-7500A	200/100KG	12008001100mm 800500800mm
MF-250	250kW	1-20kHz	400-7500A	200/100KG	12008001100mm 800500800mm
Power supply	Three-Phase,380 V 50Hz/60Hz
Voltage Range	340V-480V
Output module	IGBT
Time Setting	1-99 seconds
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Air chiller, water chiller, closed circuit cooling system (Available).
Upgraded	PLC control,infrared thermometer, (Available)
Application	Melting, forging, brazing, hardening, shrink fitting, pipe heating
Suitable material	Stainless steel, copper, aluminum, silicon and other non - magnetic materials
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
