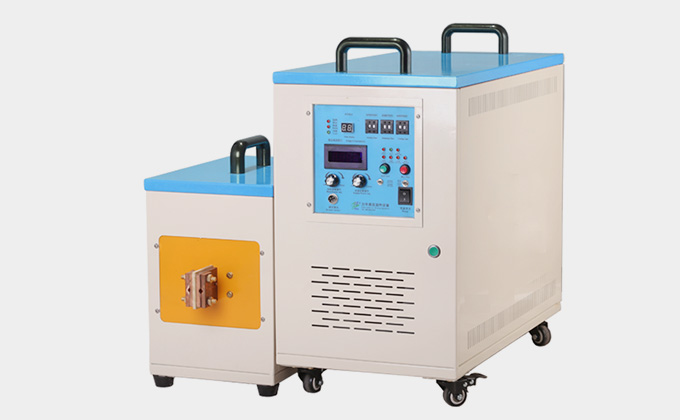

SF induction heating power supply

High Power Output

ROCHO low-frequency induction heating power supply adopts all-solid-state IGBT frequency conversion technology, owning the function of power regulation, with a 100% full load duration rate. It can run continuously for 24 hours under the maximum power state, and the heating uniformity is more stable and better.

Flexible Frequency Design

Low-frequency induction heating power supply can support a variety of induction coils, which allows to handle various workpiece flexibly. By selecting different frequency and power, our induction heaters can achieve the overall or local heat treatment of the workpiece, and it also can achieve the metal surface or deep layer heat treatment.

All-round protection function

Low-frequency induction heating power supply has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

A variety of data, such as current display, voltage display and time display can be found on the display screen, which visualizes the working conditions.

The low-frequency induction heating power supply can be equipped with infrared thermometer to realize automatic temperature control and improve heating quality along with temperature control accuracy.

The low-frequency induction heating power supply can be equipped with PLC control system to coordinate with the flow process of the automatic production line.

Low-frequency induction heating power supply can be equipped with fully enclosed internal circulation water cooling system. Induction heating power supply to provide automatic alarming and operation stopping functions when the water temperature is too high to ensure the safe and reliable operation of the equipment.

Eco-Friendly Heating

When used for melting non-magnetic materials such as stainless steel, copper, industrial silicon and aluminum, medium-frequency induction heating equipment can ensure fast melting speed, high efficiency, less combustion of material elements, prominently reducing waste of raw materials and costs. Compared with traditional heating methods, low-frequency induction heating power supply have advantages of higher efficiency, less pollution, lower energy consumption, energy saving of more than 20%, attaining to healthier and improved working environment, promotion of company image, non-polluting production process and lower energy consumption as well.

Applications:

Low-frequency induction heating power supply features in high heating efficiency, fast heating speed, high control precision and automatic production, thus is widely used in heating, forging, pipe bending, welding, hardening, melting and other industries.

1.Hot forging of fasteners, bolts, nuts, and bars;
2.Welding: saw blades, carbide tips, drill bits;
3.Hardening: gears, sprockets, shafts, shift forks, valves, ball pins and other auto parts;
4.Heat treatment: machine tool bed rails in the machine tool industry;
5.Annealing: various of stainless steel products;
6.Melting: precious metal, gold, silver, copper, etc.

Technical Specification:

Model	Output	Frequency	Current	Weight	Dimensions(LWH)
SF-40	40kW	20-50kHz	400-1800A	37.5/32.5KG	640280550mm 320220350mm
SF-60	60kW	20-50kHz	400-2400A	54/42.5KG	780370620 mm 450255390 mm
SF-80	80kW	20-50kHz	400-3500A	80/60KG	750600900 mm 500255420 mm
SF-100	100kW	20-50kHz	400-4000A	100/65KG	1000600900 mm 510255420 mm
SF-120	120kW	20-50kHz	400-4500A	100/65KG	1000600900mm 670420500mm
SF-160	160kW	20-50kHz	400-6500A	120/65KG	1000600900mm 600300400mm
SF-200	200kW	20-50kHz	400-7500A	200/100KG	12008001100mm 640360550mm
SF-250	250kW	20-50kHz	400-9000A	200/100KG	12008001100mm 640360550mm
Power supply	Three-Phase, 380 V 50Hz/60Hz
Voltage Range	340V-480V
Output module	IGBT
Time Setting	1-99 seconds
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Air chiller, water chiller, closed circuit cooling system (Available).
Upgraded	PLC control,infrared thermometer, (Available)
Application	Melting, forging, brazing, hardening, shrink fitting, pipe heating
Suitable material	Stainless steel, copper, aluminum, silicon and other non - magnetic materials
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
