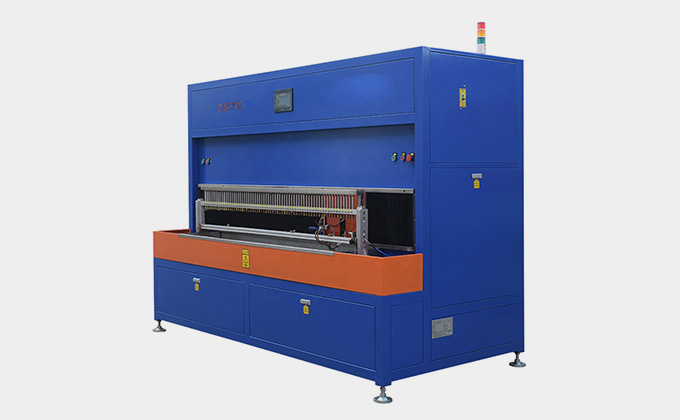

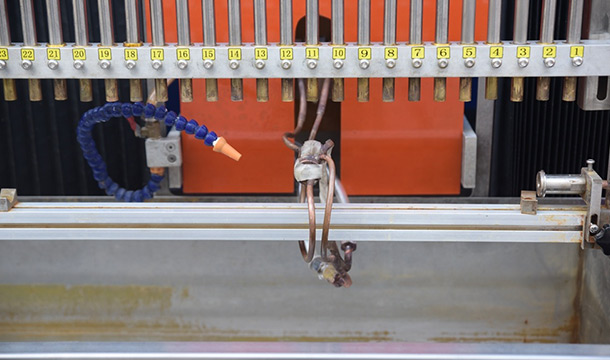

Copper Tube Brazing Systems

Stable Solid State IGBT Power Supply

Copper tube brazing systems, using all solid-state IGBT induction heating power supply, power supply range: 25KW, 30KW, 40KW, 60KW and other types. Constant power output ensures 100% utilization of the power transformer's capacity, and a full range of protection functions to achieve safe and reliable operation and 24-hour stable work.

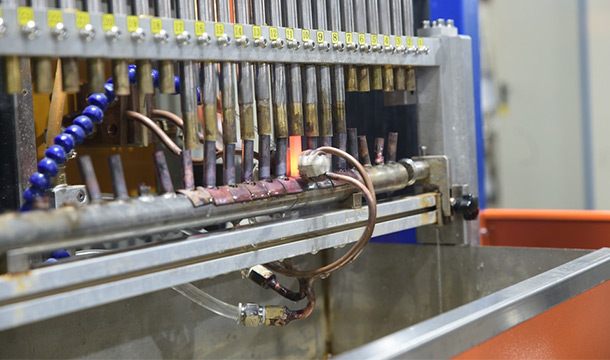

Fully Automated Operation Process

The copper tube brazing system does not require manual operation, and can simultaneously complete the entire process, assembly, heating, timing, and pressure, these four station cycle operation, with high production efficiency and low labor intensity.

All-Round Protection Function

The copper tube brazing system use of pure water circulation processing system, digital flow monitoring system, PLC automatic control system, CPU automatically detects water flow, and is equipped with sound and light alarm devices and fault self-diagnosis functions, It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

PLC Control System
The PLC interface is used to display the current, voltage, water circuit, and faults on the screen, Touch screen operation can monitor the running status of the machine, entirely eliminating any guesswork.

Auto Or Manual Mode Operation
The induction brazing system has automatic and manual operation modes. It allows the operator to set parameters, adjust the heating power and time, optimize the heating process, and improve brazing quality.

Temperature Control System

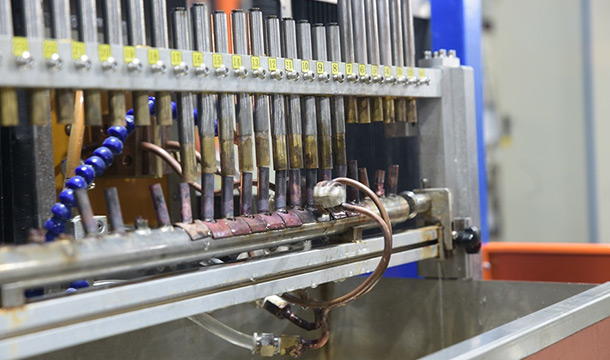

The copper tube brazing system use infrared automatic temperature measurement system, automatic clamping, automatic positioning, so ensure the uniform brazing temperature.

Hydraulic Control System
The copper tube brazing system adopts a hydraulic control system, the brazing seam is more perfect and the quality is more stable; the machine has the advantages of uniform heating temperature, quick brazing speed, good brazing quality and power saving.

Eco-Friendly Heating

The copper tube brazing system replaces labor-intensive flame brazing operations. When brazing, there is no open flame, no steam stripping, no thermal radiation, no dust pollution, induction brazing provides a more comfortable working environment.

Applications:

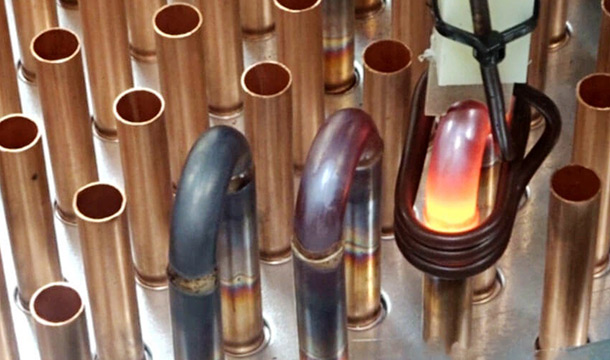

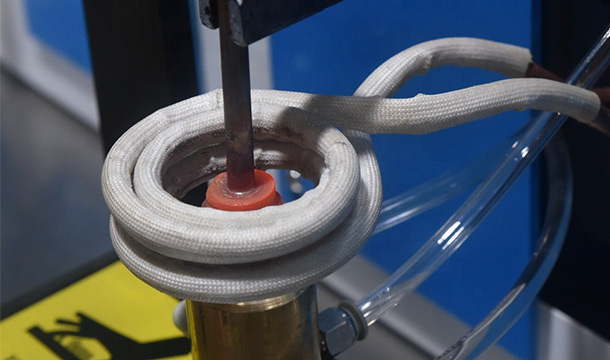

The copper pipe brazing system is mainly designed for the brazing of joints, faucets and pipe fittings in the sanitary ware industry, which solves the problems of manual flame brazing in the past, reduces labor intensity, and improves productivity and quality, such as:
Joint faucet brazing;
Compressor parts brazing
Faucet brazing (pipe and base connection, screw sleeve);
Steel and copper parts, such as brake pads and oil pipelines;
The connection between the aluminum evaporator and the compressor in the AC system;
Washing machines parts brazing (pipe-pipe connection, pipe-shell connection, pipe-valve connection).

Technical Specification:

Model	ROCH-25	ROCH-30	ROCH-40	ROCH-60
Power	2×25kW	2×30kW	2×40kW	2×60kW
Frequency	25-80kHz	25-80kHz	25-80kHz	25-80kHz
Power supply	Three phase380V 50-60Hz	Three phase380V 50-60Hz	Three phase380V 50-60Hz	Three phase380V 50-60Hz
Work Pressure	2-3Mpa	2-3Mpa	2-3Mpa	2-3Mpa
Brazing diameter	≤φ130	≤φ140	≤φ180	≤φ250
Brazing size	aluminum thickness:0.2-12mm, height:100-600mm
Weight	500KG	550KG	600KG	650KG
Dimension	1550x1700x2200mm	1550x1700x2200mm	1550x1700x2200mm	1550x1700x2200mm
Configuration	Single power supply, four transformer
Capacity	5-10 pieces per minute
Cooling Way	Water cooling
Water Temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling Way	Closed circuit cooling system, air chiller, water chiller (Available)
Control system	CPU, PLC control system, temperature control system
Protection Function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
