Portable Induction Brazing System

ROCHO developed a new type of integrated portable induction brazing system, consisting of the power supply, inverter module, transformer heating head, cooling system, temperature control system, and output cable, let the operation more flexible and convenient.

Send Email

Chat Now

Share With:

All Solid-State IGBT Drive Circuit

The newest type of portable intelligent induction brazing machine adopts PLC control system, integrated circuit design, and IGBT drive circuit, which significantly improves the resonance wave form, reduces switching losses, increases the stability of high frequency tracking, to provide more stable and better heating uniformity.

Portable Transformer Design

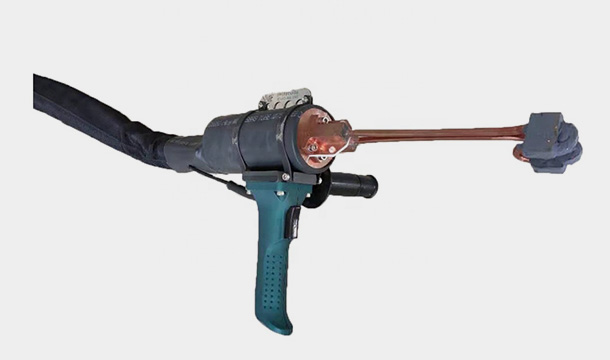

Intelligent brazing system with portable transformer connected to the machine by flexible cables. The hand-held transformer can be used with a variety of heating coils to adapt to different part shape, and it can also be integrated with the robotic arm in the automated production line.

All-Round Protection Function

The intelligent induction brazing system has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

PLC Control System
The PLC interface is used to display the current, voltage, water circuit, and faults on the screen, Touch screen operation can monitor the running status of the machine, entirely eliminating any guesswork.

Auto or manual mode operation
The induction brazing system has automatic and manual operation modes. It allows the operator to set parameters, adjust the heating power and time, optimize the heating process, and improve brazing quality.

Eco-Friendly Heating
The newest Integrated system replaces labor-intensive flame brazing operations. When brazing, there is no open flame, no steam stripping, no thermal radiation, no dust pollution, induction brazing provides a more comfortable working environment.

Integrated Circuit Design

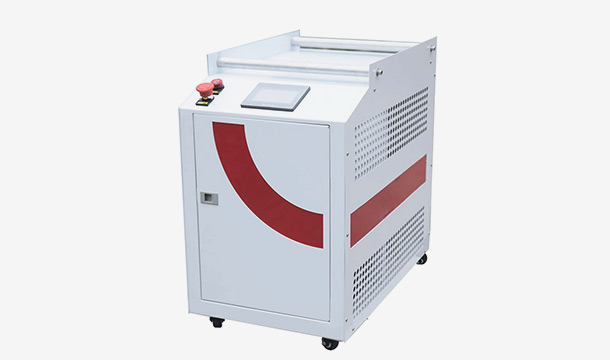

The newest induction brazing system adopts an integrated circuit design, the rectifier cabinet, inverter cabinet and cooling system are integrated, the equipment is small in size, compact and portable, provide more flexibility for the brazing task.

Move Freely

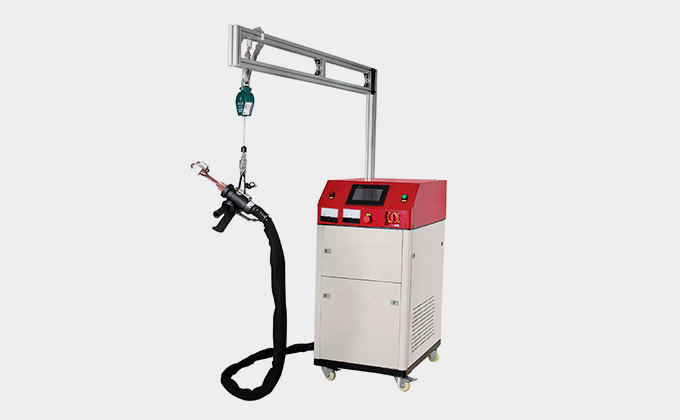

The brazing system is equipped with pulley and can be moved freely. The cable length can be customized, up to 200 meters long. The flexible cable and heating heads allow for the placement in even very tight and inconvenient working environments, such as boiler roworkshop.

Applications:

ROCHO INDUCTION provides a flexible and intelligent brazing system for your various heating and brazing applications, which can effectively heat any metal parts, such as:
Brazing of transformer clip joint;
Brazing of carbide saw tooth;

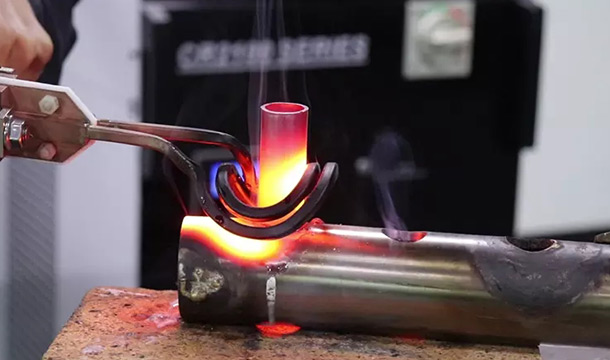

Brazing of steel tube, stainless steel pipe and tube, tube and shell;

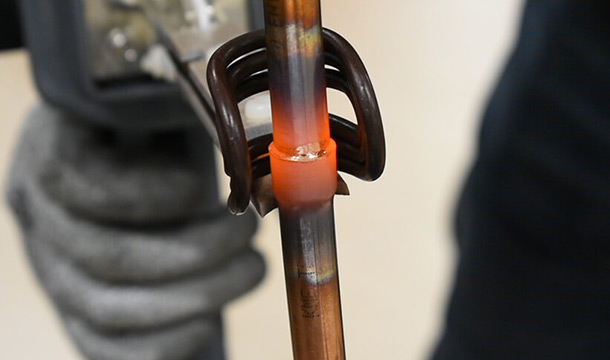

Brazing of copper pipes in the air-conditioning industry, refrigerator industry, bathroom industry, etc.

Technical Specification:

Model	Output Power	Input Current	Frequency Range	Cable Length	Duty Cycle	Dimensions
RC-35	35kW	35A	30-80kHz	1-30M	100%	Customized
RC-60	60kW	52A	30-80kHz	1-30M	100%	Customized
RC-80	80kW	70A	30-80kHz	1-30M	100%	Customized
Power supply	Three-Phase, 380 V 50Hz/60Hz
Voltage Range	340V-480V
Output module	IGBT
Time Setting	1-99 seconds
Structure	Power supply, cooling system, hand-held transformer, brace, output cable.
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Air chiller, water chiller (Available)
Upgraded	PLC control, infrared thermometer, (Available)
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
