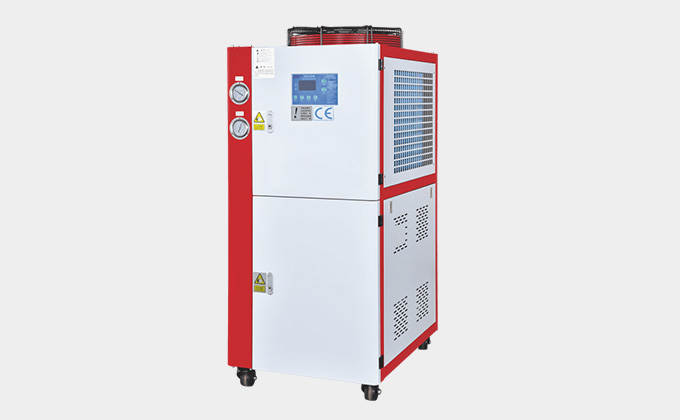

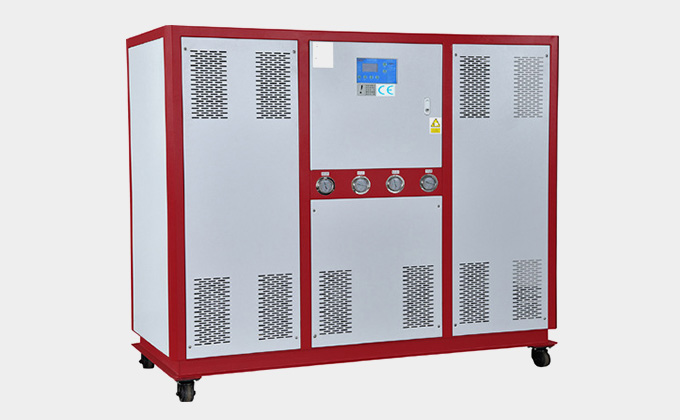

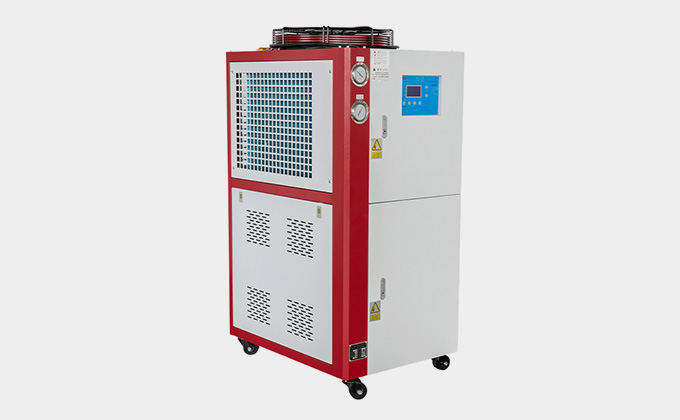

Air Cooled Chiller

High Cooling Efficiency

ROCHO induction has many years of experience in the design and manufacturing of industrial chillers. Our smart and special design help our air-cooled industrial chillers run with high cooling efficiency, low carbon, and save investment for our customers.

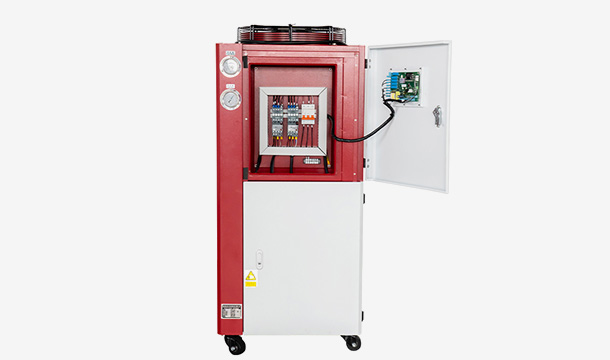

Compared with the traditional control method, the special controller has obvious advantages such as anti-electromagnetic interference, strong resistance to cold and heat, strong control logic, sensitive response and accurate action.

High Temperature Control Accuracy

The air-cooled industrial chiller can provide cold water of 3-30 degrees, and the special low-temperature type can be as low as -25 degrees of ice water, the temperature difference does not exceed ±1 degrees. Air-cooled chiller, cooling capacity from 1316-156245Kcal/h, compressor power from 0.5-60HP, built-in stainless steel water tank, high-performance, high-flow special pump.

Wide Range Of Application Industries

Air-cooled industrial chillers are widely used in electronics, electroplating, food, machinery, chemical, laser, medical and other industries.

Plastic Industry
The chiller can accurately control the temperature of the plastic molding mold to shorten the molding cycle, accelerate product shaping, and ensure the stability of product quality.

Electronics Industry
The chiller can stabilize the internal molecular structure of electronic components on the production line, improve the qualification rate of electronic components.

Electroplating Industry
The chiller can control the plating temperature, increase the density and smoothness of the plated parts, shorten the plating cycle, and improve product quality.

Machinery Industry
The chiller can be used to cool the spindle lubricating oil and hydraulic transmission medium of CNC machine tools, grinders, and various precision machine tools. It can control the temperature of the pressure oil in the oil pressure system, and accurately control the oil temperature, Effectively reduce the thermal deformation of the machine tool and improve the machining accuracy of the machine tool;

Components Come From World Famous Brand

Our air-cooled industrial chillers use world famous components. If working normally, our industrial chillers can service more than 10 years.

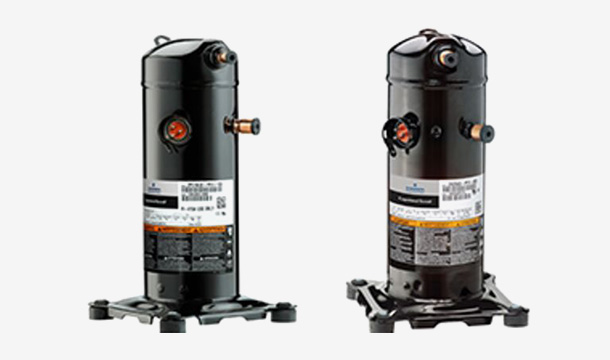

PANASONIC/COMPLAND COMPRESSOR
SCHNEIDER ELECTRIC

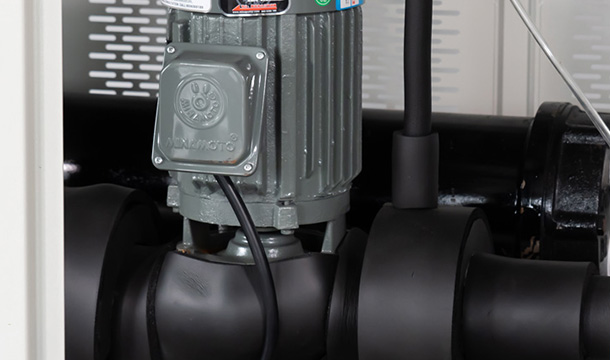

GRUNDFOS CIRCULATING PUMP
KSB CIRCULATING PUMP

Perfect Safety Protection:

1. Refrigeration system voltage protection;
2. Compressor overload protection;
3. Power supply voltage protection;
4. Water system Antifreeze protection and water flow protection.
5. Over 50kw, there are dual refrigeration circuits. Even if the main circuit fails, other circuits can work normally.

Technical Specification:

Model		01A	02A	03A	04A	05A	06A	08AD	10AD	12AD	15AD	20AD	25AD	30AD	40AD	50AD	60AD
Cooling Capacity	kw/hr	2.94	5.67	8.39	10.9	13.95	16.9	21.8	28.01	33.79	44.15	59.08	71.72	87.2	113.58	135.49	181.68
Cooling Capacity	kcal	2528	4872	7216	9347	11990	14560	18748	24089	33999	44419	59442	72169	87741	114280	136330	187499
Temperature range	3℃-Room temperature (Below 0℃ can be customized)
Power supply		1N-220V 50HZ/60HZ		3N-380V/415V 50HZ/60HZ
Total power	KW	1.27	2.02	2.85	3.65	4.86	5.61	7.65	9.9	11.4	13.7	18.8	22.75	28.5	37.1	46.2	55.2
Compressor	Type	Hermetic scroll type or piston								Hermetic scroll type or piston
Compressor	KW	0.75	1.50	2.20	3.00	3.75	4.50	6.00	7.50	9.00	11.00	15.00	18.75	22.00	30.00	37.50	45.00
Blower	M³/h	1000	1200	3000	4000	5000	6000	8000	10000	12000	15000	20000	25000	30000	40000	50000	60000
Blower	KW	0.14	0.14	0.28	0.28	0.36	0.36	0.90	0.90	0.90	1.20	1.60	1.80	2.50	3.10	4.70	4.70
Condensator	Form	Efficient brass sets corrugated aluminum fin
Evaporator	M³/h	0.51	0.97	1.44	1.87	2.4	2.91	3.75	4.82	5.81	7.6	10.16	12.34	15.2	19.53	23.3	30.52
Evaporator	M³	0.028	0.04	0.05	0.05	0.065	0.065	0.13	0.18	0.18	0.21	0.28	0.32	0.32	0.61	0.66	0.72
Circulating pump	KW	0.37	0.37	0.37	0.37	0.75	0.75	0.75	1.5	1.5	1.5	2.2	2.2	4	4	4	5.5
Circulating pump	m	22	22	22	22	23	23	23	21.5	21.5	21.5	22	22	25	25	25	26
Machine size	L/mm	680	800	800	800	800	1045	1330	1330	1550	1550	1760	1970	2000	1900	2400	2400
	W/mm	420	480	600	600	600	555	725	725	750	750	860	900	1130	1500	1450	1450
	H/mm	720	860	1190	1190	1190	1160	1330	1330	1460	1460	1560	1700	1660	1700	1700	1700
Unit weight	KG	60	90	130	140	170	210	270	350	370	480	590	790	880	1000	1280	1420

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
