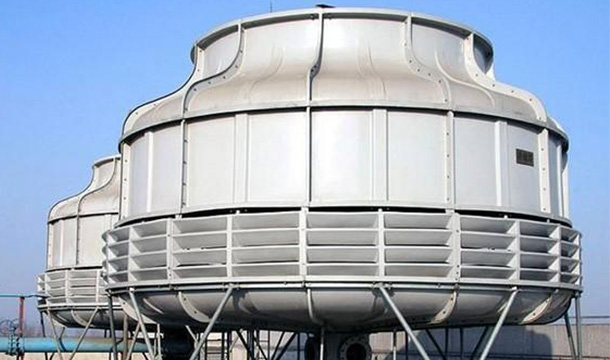

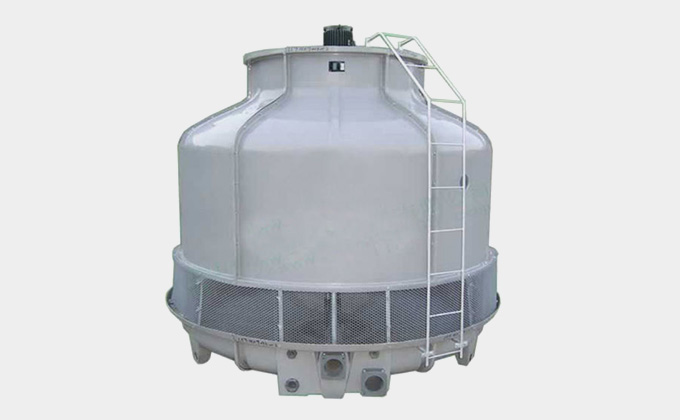

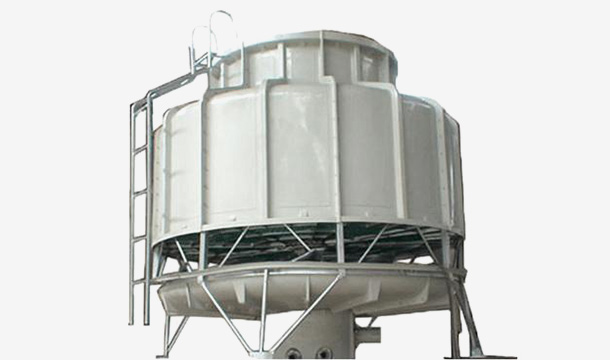

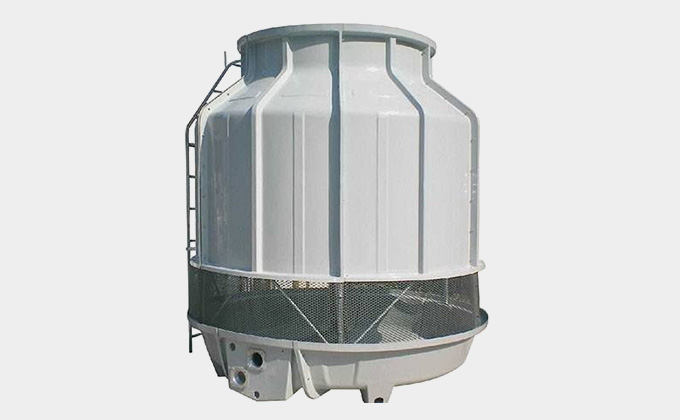

Open Circuit Cooling Tower

The circular counter-flow FRP cooling tower is an ideal equipment with high efficiency and energy saving. The internal use adopts counter-flow gas heat exchange technology and closed water circulation, which improves the reuse rate of water and effectively reduces costs. Therefore, it is widely used in various field, especially suitable for cooling water circulation systems such as air conditioning, refrigeration, air compressor stations, induction heating furnaces and condensation processes.
Are you looking for an induction heating solution, please contact us here today.
Protect Induction Heating System
Induction heating system will generate heat in the induction magnetic field, overheated temperature will damage the components. Therefore, water cooling should be used to take away this part of the heat to protect the equipment. Installing a proper cooling system will extend the life of the induction power supply, reduce maintenance costs and downtime. The cooling system is easy for operation and maintenance, and is widely used in induction heating systems, forging furnaces, hardening systems, and other heat treatment systems.
Working Principle
The open circuit cooling tower is a device that uses the contact between air and water (direct or indirect) to cool the water. The circulating water is sprayed on the glass fiber filler through the sprinkler pipe, and then the water is in contact with the air to achieve the heat change. And the air circulation in the tower driven by the fan, which can bring out the hot air after heat exchange with water, so as to achieve the effect of cooling circulating water.
Structure

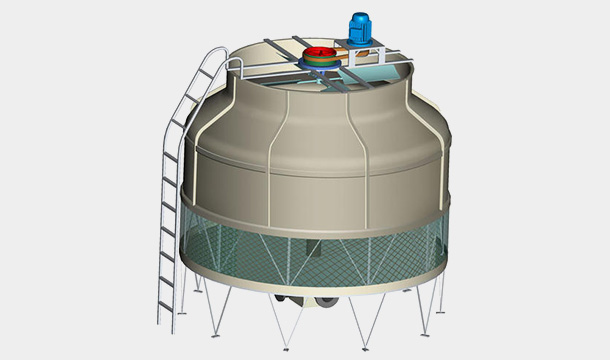

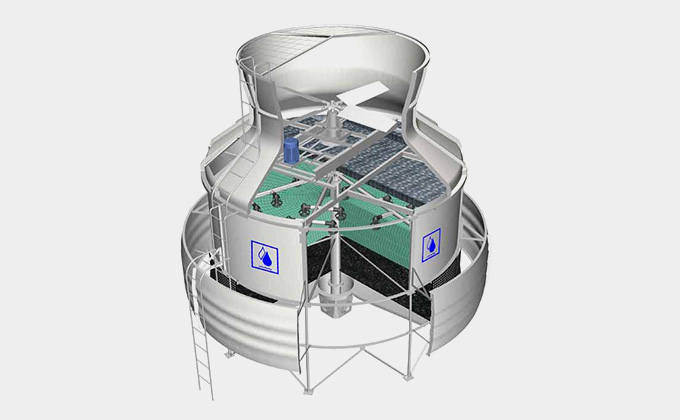

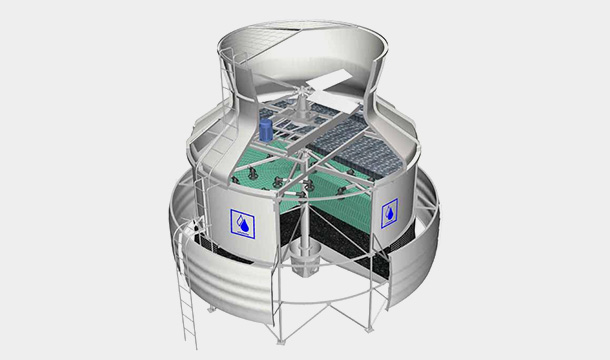

The complete cooling tower includes the tower shell, filling, fan, water distribution system, rotor, ventilation equipment, nozzles, water baffle, water collection tank, etc.
Tower Shell
The tower body is made of high-strength FRP composite material, and the surface gel coat resin contains anti-ultraviolet agent, anti-aging, corrosion resistance, no deformation, no fading.
Filling
Adopt polyvinyl chloride wave plate, with horizontal ribs added, strong water redistribution ability, low resistance, good thermal performance, high temperature resistance of 70 degrees, low temperature of -50 degrees.
Fan
The fan is made of high-grade plastic or aluminum alloy, aluminum alloy plate wing shape or glass fiber reinforced plastic blade, low noise and high efficiency.
Motor
Low noise and energy saving motor,
High temperature resistance.
Good sealing and waterproof performance,
The motor can save up to 30%, and the piping in the tower can be used as a closed loop, which greatly reduces user operating costs.
Deceleration device
Adopts polyester fiber reinforced neoprene power belt transmission, high temperature resistance, high efficiency, does not stretch when exposed to water, overcomes the slipping phenomenon, and has low noise.
Bracket
The steel brackets in the tower are treated with galvanizing process and coated with anti-corrosion paint or electrostatic powder spraying, which has a particularly strong anti-corrosion ability. Fasteners are all galvanized or stainless steel bolts.
Technical Specification:

Model

Flow Rate
(m3/h)
Fan Air Flow
(CMM)

Water Pressure
(Kpa)

Net Weight
(kg)
Operating Weight
(kg)
Dimension (mm)
Motor Power
(kw)

Diameter(mm)
Max Diameter
Height
NRT-10 7.8 0.18 Φ600 85 13 46 190 Φ945 1530
NRT-15 11.7 0.37 Φ600 140 13 54 290 Φ1195 1415
NRT-20 15.6 0.55 Φ730 160 14 67 300 Φ1195 1590
NRT-25 19.5 0.75 Φ730 200 16 98 500 Φ1400 1820
NRT-30 23.4 0.75 Φ730 230 16 116 530 Φ1650 1705
NRT-40 31.2 1.5 Φ890 280 16 130 550 Φ1650 1775
NRT-50 39.2 1.5 Φ890 330 17 190 975 Φ1830 1835
NRT-60 46.8 1.5 Φ1150 420 17 240 1250 Φ2145 1955
NRT-80 62.6 1.5 Φ1150 450 18 260 1280 Φ2145 2035
NRT-100 78.1 2.2 Φ1410 700 21 500 1690 Φ2900 2370
NRT-125 97.5 2.2 Φ1410 830 23 540 1640 Φ2900 2555
NRT-150 117 2.2 Φ1410 950 23 580 1680 Φ2900 2555
NRT-175 136.8 4 Φ1750 1150 30 860 1960 Φ3110 2850
NRT-200 156.2 4 Φ1750 1250 30 880 1980 Φ3110 2850
NRT-225 175.5 5.5 Φ2050 1500 33 1050 2770 Φ4120 3580
NRT-250 195.1 5.5 Φ2050 1750 33 1080 2800 Φ4120 3580
NRT-300 234 7.5 Φ2350 2000 34 1760 3930 Φ4730 3680
NRT-350 273.2 7.5 Φ2350 2200 34 1800 3790 Φ4730 3680
NRT-400 312.1 11 Φ2745 2400 36 2840 5740 Φ5600 3840
NRT-500 392.4 15 Φ2745 2600 36 2900 5800 Φ5600 3840
NRT-600 468 15 Φ3400 3750 42 3950 9350 Φ6600 4470
NRT-700 547.2 18.5 Φ3400 3750 42 4050 9450 Φ6600 4470
NRT-800 626.4 22 Φ3700 5000 45 4700 11900 Φ7600 4720
NRT-1000 781.2 22 Φ3700 5400 45 4900 12100 Φ7600 4720
ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
