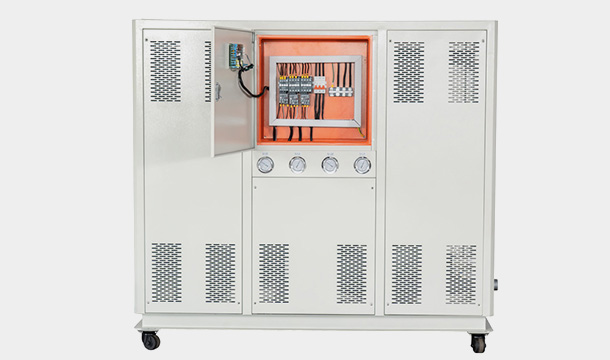

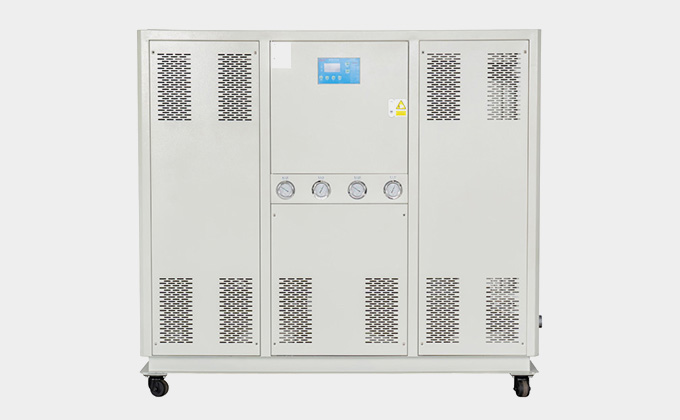

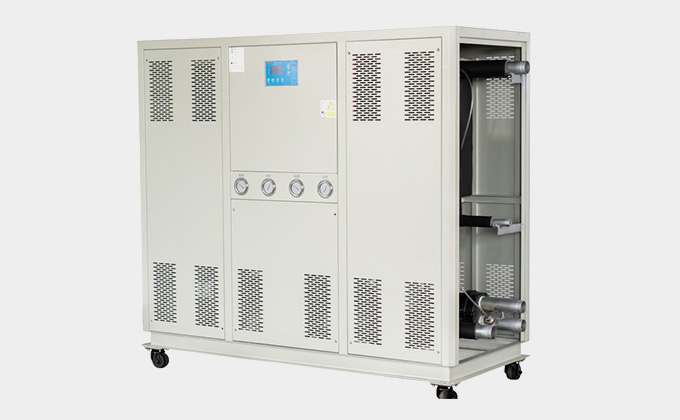

Water Cooled Chiller

The water-cooled industrial chiller is a kind of equipment that aims at different processes by cooling the equipment to achieve the purpose of the process. The source of heat exchange is water and it is equipped with a special electric fan, thus it is called "water cooling".
Are you looking for an induction heating solution, please contact us here today.
High Cooling Efficiency
ROCHO induction has many years of experience in the design and manufacturing of industrial chillers. Our smart and special design help our water-cooled industrial chillers run with high cooling efficiency, low carbon, and save investment for our customers.

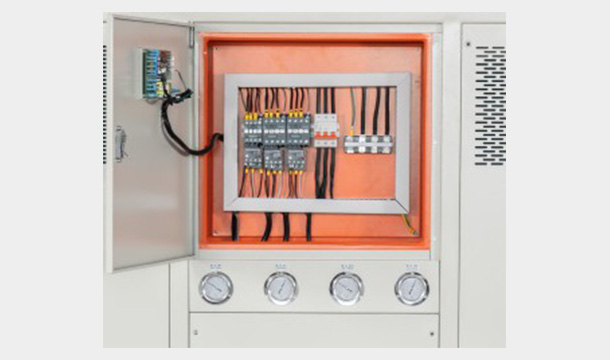

Compared with the traditional control method, the special controller has obvious advantages such as anti-electromagnetic interference, strong resistance to cold and heat, strong control logic, sensitive response and accurate action.
High Temperature Control Accuracy
The water-cooled industrial chiller can provide cold water of 3-30 degrees, and the special low-temperature type can be as low as -25 degrees of ice water, the temperature difference does not exceed ±1 degrees. Water-cooled chiller, cooling capacity from 8251-170383Kcal/h, compressor power from 3-60HP, built-in stainless steel water tank, high-performance, high-flow special pump.
Wide Range Of Application Industries
Water-cooled industrial chillers are widely used in electronics, electroplating, food, machinery, chemical, laser, medical and other industries.
Plastic industry
The chiller can accurately control the temperature of the plastic molding mold to shorten the molding cycle, accelerate product shaping, and ensure the stability of product quality.
Electronics industry
The chiller can stabilize the internal molecular structure of electronic components on the production line, improve the qualification rate of electronic components.
Electroplating industry
The chiller can control the plating temperature, increase the density and smoothness of the plated parts, shorten the plating cycle, and improve product quality.
Machinery industry
The chiller can be used to cool the spindle lubricating oil and hydraulic transmission medium of CNC machine tools, grinders, and various precision machine tools. It can control the temperature of the pressure oil in the oil pressure system, and accurately control the oil temperature, Effectively reduce the thermal deformation of the machine tool and improve the machining accuracy of the machine tool;
Components Come From World Famous Brand
Our water-cooled industrial chillers use world famous components. If working normally, our industrial chillers can service more than 10 years.
PANASONIC/COMPLAND COMPRESSOR
SCHNEIDER ELECTRIC
GRUNDFOS CIRCULATING PUMP
KSB CIRCULATING PUMP
Perfect Safety Protection:
1. Refrigeration system voltage protection;
2. Compressor overload protection;
3. Power supply voltage protection;
4. Water system Antifreeze protection and water flow protection.
5. Over 50kw, there are dual refrigeration circuits. Even if the main circuit fails, other circuits can work normally.
Technical Specification:
Model   03W 04W 05W 06W 08W 10WD 12WD 15WD 20WD 25WS 30WS 40WS 50WS 60WS
Cooling Capacity kw/hr 9.59 12.43 15.91 19.18 24.85 31.83 38.37 50.14 67.14 81.53 99.19 129.06 153.91 198.12
kcal 8251 10682 13690 16503 21370 27370 32994 43120 57748 70120 85303 110984 132359 170383
Temperature range 3℃-Room temperature (Below 0℃ can be customized)
Power supply 3N-380V/415V 50HZ/60HZ
Total power KW 2.575 3.375 4.5 5.25 6.75 9 10.5 12.5 71.2 20.95 26 34 41.5 50.5
Compressor Type Hermetic scroll type or piston
KW 2.20 3.00 3.75 4.50 6.00 7.50 9.00 11.15 15.00 18.75 22.00 30.00 37.50 45.00
Condensator M³/h 2.06 2.67 3.42 4.13 5.34 6.85 8.24 10.78 14.44 17.54 21.32 27.74 33.09 41.6
Form Efficient copper tube shell and tube type
Evaporator M³/h 1.65 2.14 2.75 3.3 4.27 5.47 6.59 8.62 11.55 14.03 17.06 22.19 26.48 33.28
0.05 0.05 0.058 0.058 0.15 0.15 0.15 0.285 0.3 0.38 0.38 0.56 0.56 0.61
Circulating pump KW 0.375 0.375 0.75 0.75 0.75 1.5 1.5 1.5 2.2 2.2 4 4 4 5.5
m 22 22 23 23 23 21.5 21.5 21.5 22 22 25 25 25 26
Machine size L/mm 850 850 850 1080 1200 1200 1200 1460 1750 1750 1750 2200 2200 2280
W/mm 480 480 480 550 610 610 610 700 760 760 760 920 920 1000
H/mm 980 980 980 1000 1260 1260 1260 1400 1500 1500 1500 1600 1600 1700
Unit weight KG 120 140 150 200 210 290 310 400 440 440 440 850 1000 1190
ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
