Copper Melting Furnace

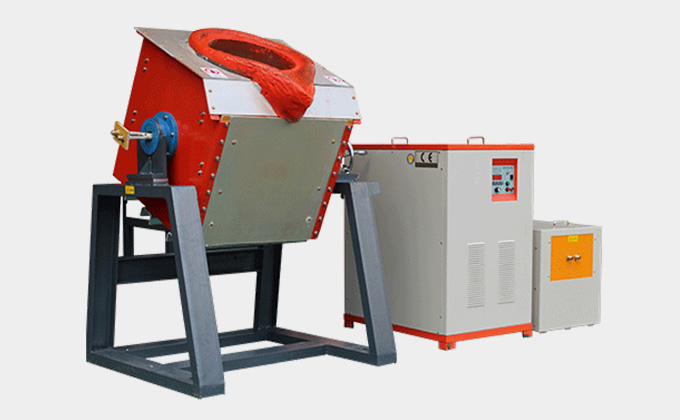

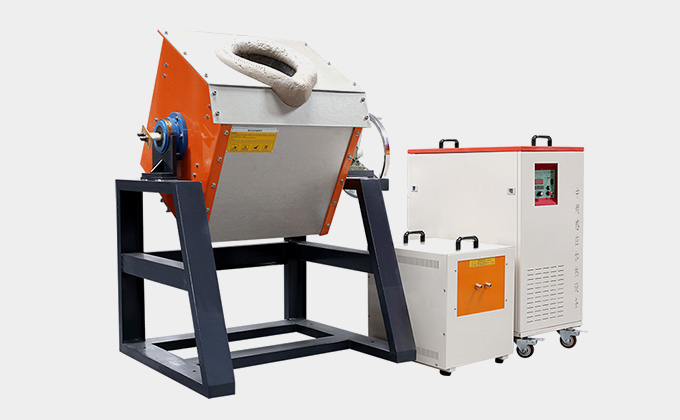

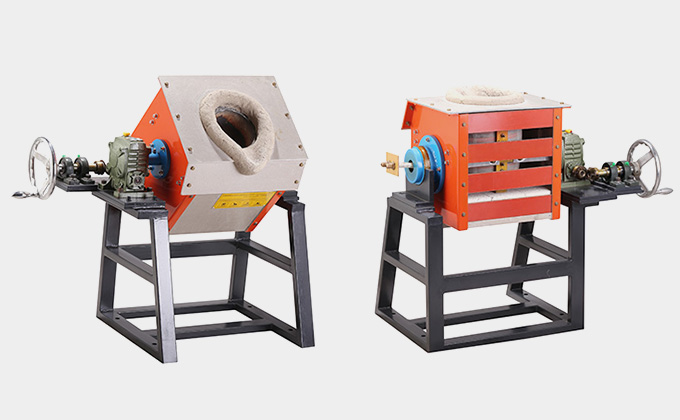

Our tilting type induction melting furnaces are specially designed for the melting of ferrous and non-ferrous metals, such as gold, silver, copper, bronze, brass and copper alloys and other metal materials. Their capacity ranges from 3 kg to 200 kg, suitable for small workshops and school laboratory.

Send Email

Chat Now

Share With:

High Performance

The induction melting furnace adopts advanced solid state IGBT circuit with strong output power, quick melting speed and high operational stability. The melting temperature can be set in advance and has a heat preservation function. The maximum temperature can reach 1800 degrees celsius.

Technology Process

The induction melting furnace adopt electromagnetic induction heating principle, and the metal is cut by an alternating magnetic field, so that the metal starts to melt after heating up, and then process melting, refining, purification, and casting molds.

All-Round Protection Function

The induction melting furnace consists of three parts: induction heating power supply, compensation capacitor and furnace body. The induction heating power supply has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

Quick Melting Speed
Induction melting furnace provide quick melting speed, it can achieve high-speed melting within 20-30minutes.

High Temperature Crucible
We provide high-quality crucibles specially designed for the melting of ferrous and non-ferrous metals. These crucible are manufactured using high-quality raw materials, which are high temperature resistant, porcelain or any inert material, and the metal melts at a temperature of 1700°C.

Ease In Operation
The installation and operation are simple, only need to connect the power supply and water cooling system, and it is very easy to replace the crucible to meet the melting requirements of different materials.

Eco-Friendly Melting

The temperature around the furnace is low, there is less smoke and dust, no dust pollution, and low energy consumption, induction melting provides a more comfortable working environment.

Applications:

ROCHO INDUCTION can offer and custom high quality induction melting furnace to meet the
following operations:
Platinum Melting

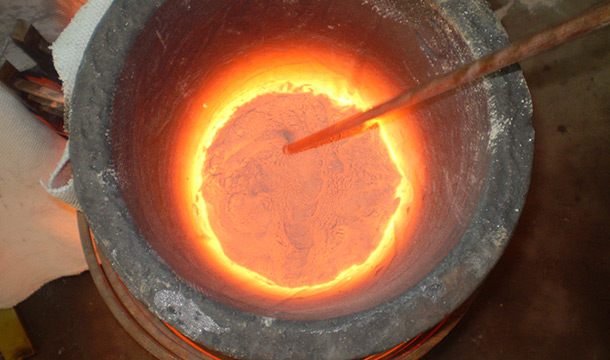

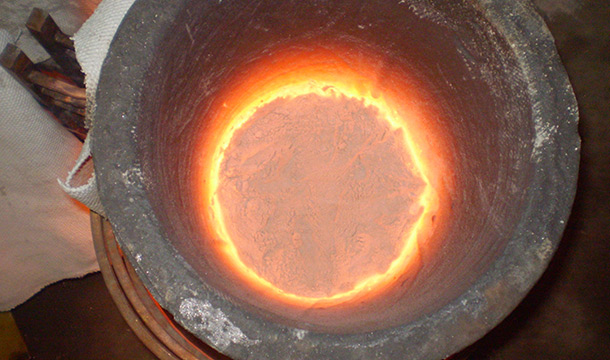

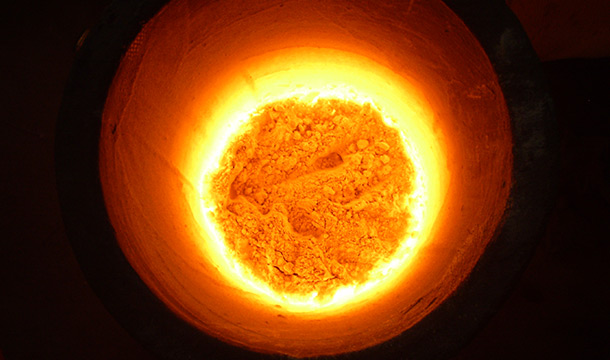

Copper Melting
Silicon Melting
Zinc Melting
Iron Melting
Aluminum Melting
Steel and Stainless Steel Melting

Technical Specification:

Melting Capacity:

Model	Melt steel, iron, stainless steel	Melt gold, sliver, platinum,copper	Melt aluminum alloy, zinc alloy
MF-15	3kg	10kg	3kg
MF-25	5kg	20kg	5kg
MF-35	10kg	30kg	10kg
MF-45	20kg	50kg	20kg
MF-70	25kg	100kg	25kg
MF-90	40kg	120kg	40kg
MF-110	50kg	150kg	50kg
MF-160	100kg	250kg	100kg

Melting Furnace:

Model/ Parameter	Output Power (kW)	Output Current (A)	Working Voltage (V/Hz)	Output Voltage (V)	Frequency (kHz)	Water Flow (L/Min)	Hydraulic Pressure (Mpa)	Packing Volume (CBM)	Gross Weight (KG)
MF-15	15	18	380/50	70-550	1-20	10	0.2	1	170
MF-25	25	36	380/50	70-550	1-20	10	0.2	1	200
MF-35	35	57	380/50	70-550	1-20	10	0.2	1.2	200
MF-45	45	80	380/50	70-550	1-20	15	0.2	1.5	250
MF-70	70	110	380/50	70-550	1-20	15	0.2	1.8	250
MF-90	90	140	380/50	70-550	1-20	20	0.2	2	260
MF-110	110	160	380/50	70-550	1-20	20	0.2	2.3	280
MF-160	160	240	380/50	70-550	1-20	20	0.2	3.2	410

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
