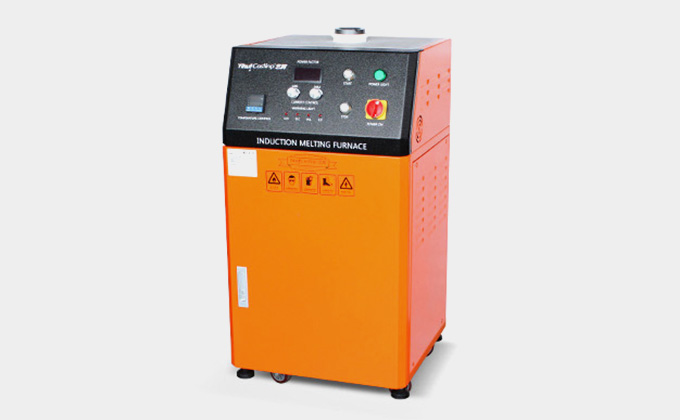

Platinum Melting Furnace

High Performance

The induction melting furnace adopts advanced solid state IGBT circuit with strong output power, quick melting speed and high operational stability. The melting temperature can be set in advance and has a heat preservation function. The maximum temperature can reach 1800 degrees celsius.

Technology Process

The induction melting furnace adopt electromagnetic induction heating principle, and the metal is cut by an alternating magnetic field, so that the metal starts to melt after heating up, and then process melting, refining, purification, and casting molds.

All-Round Protection Function

The induction melting furnace has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

Quick Melting Speed
Induction melting furnace provide quick melting speed, it can achieve high-speed melting within 4 minutes.

Infrared Temperature Control
The induction melting furnace can be equipped with infrared thermometer to realize automatic temperature control and improve heating quality along with temperature control accuracy.

High Temperature Crucible
We provide high-quality crucibles specially designed for the melting of ferrous and non-ferrous metals. These crucible are manufactured using high-quality raw materials, which are high temperature resistant, porcelain or any inert material, and the metal melts at a temperature of 1700°C.

Compact Design

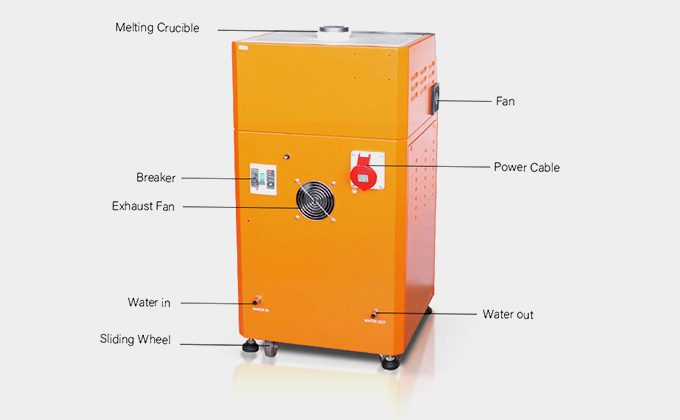

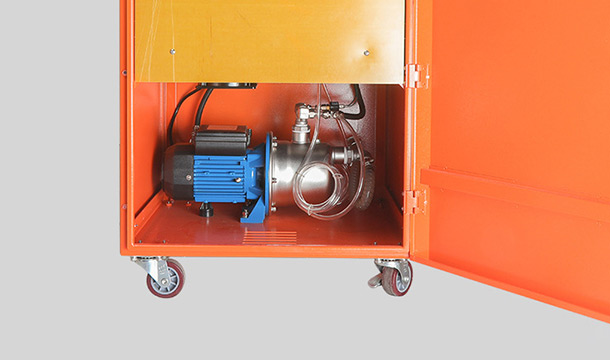

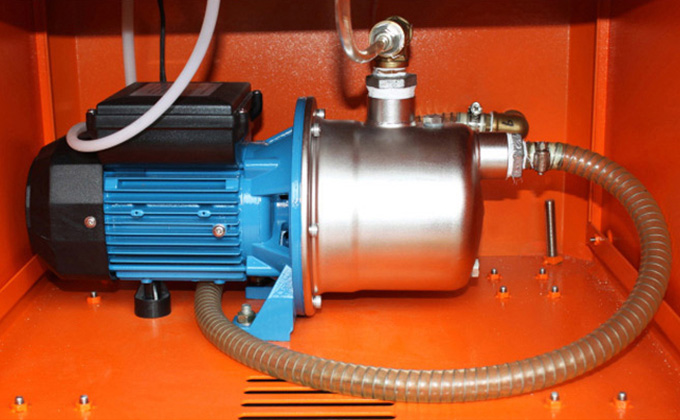

The compact designed for platinum induction melting furnace make it very convenient and save space. The water pump is built-in the furnace for cooling.

Technical Specification:

Melting furnace:

Description	Model	Voltage	Phase	Weight	Power input	Size
1kg mini furnace	Z.M.MF.ML001	AV220V 50/60Hz	1	28kg	3KW	580303300mm
2kg mini furnace	Z.M.MF.ML002	AV220V 50/60Hz	1	28kg	5KW	580303300mm
1kg melting furnace	Z.M.MF.00001	220V/380V ±15%	1/3	28kg	5KW,10KW	500500950mm
2kg melting furnace	Z.M.MF.00002	220V/380V ±15%	1/3	28kg	5KW/12KW	500500950mm
2.5kg melting furnace	Z.M.MF.00025	220V/380V ±15%	1/3	28kg	5KW/12KW	500500950mm
3kg melting furnace	Z.M.MF.00003	220V/380V ±15%	1/3	28kg	5KW/12KW	500500950mm
4kg melting furnace	Z.M.MF.00004	220V/380V ±15%	1/3	28kg	5KW/12KW	500500950mm
5kg melting furnace	Z.M.MF.00005	380V ±15%	3	28kg	12KW	500500950mm
5.5kg melting furnace	Z.M.MF.00055	380V ±15%	3	28kg	12KW	500500950mm
6kg melting furnace	Z.M.MF.00006	380V ±15%	3	28kg	15KW	500500950mm
8kg melting furnace	Z.M.MF.00008	380V ±15%	3	28kg	15KW	500500950mm

Melting Crucible:

Description	Model	Weight(g)	Size (mm)
Description	Model	Weight(g)	Φ1	Φ2	Φ3	H
1kg graphite crucible	G.GM.1000A	155	58	35	47	88
1kg ceramic shield	C.CC.1000A	170	70	51	59	89
2kg graphite crucible	G.GM.2000A	245	65	44	57	110
2kg ceramic shield	C.CC.2000A	270	84	61	70.5	112
2.5kg graphite crucible	G.GM.2500A	290	65	44	57	126
2.5kg ceramic shield	C.CC.2500A	320	84	61	71	127
3kg graphite crucible	G.GM.3000A	385	85	60	75	105
3kg ceramic shield	C.CC.3000A	335	97	79	89	103
4kg graphite crucible	G.GM.4000A	465	85	60	76	131
4kg ceramic shield	C.CC.4000A	370	100	80	90	132
5kg graphite crucible	G.GM.5000A	650	100	69	89	131
5kg ceramic shield	C.CC.5000A	700	118.5	92	100.5	135
5.5kg graphite crucible	G.GM.5500A	820	105	70	90	156
5.5kg ceramic shield	C.CC.5500A	600	122	94	107	155
6kg graphite crucible	G.GM.6000A	1210	115	79	97	178
6kg graphite crucible	G.GM.6000B	1135	115	79	100	180
6kg ceramic shield	C.CC.6000A	725	127	100	113	178
6kg ceramic shield	C.CC.6000B	800	128	104	116	181
8kg graphite crucible	G.GM.8000B	1505	120	84	110	181
8kg ceramic crucible	C.CC.8000B	920	143	112	132	182

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
