Steel and Stainless Steel Melting Furnace

ROCHO INDUCTION medium frequency melting furnace, the furnace shell adopts steel structure, to prevents magnetic leakage. It is mainly used for the melting of ferrous or non-ferrous metals such as steel, stainless steel, aluminum, zinc, lead, alloy, etc.

Send Email

Chat Now

Share With:

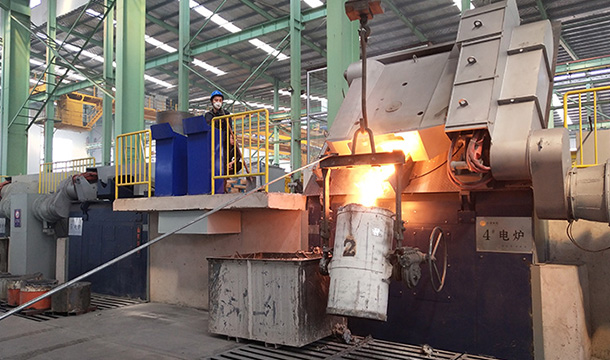

Steel and Stainless Steel Melting Furnace

Working Principle

The medium frequency induction melting furnace is a frequency conversion device that converts three-phase power frequency current into single-phase medium frequency current. This alternating magnetism creates resistance in the metal, achieve the purpose of heating and melting the metal.

Advantage

Induction furnaces are mainly used for melting steel, iron, copper, aluminum and alloys. The power ranges from 250kW to 5000kW, and the output capacity ranges from 0.35T to 10T. The steel shell furnace is welded with high-quality steel structure. The furnace body is safe and durable, and has a long life.

Structural Features

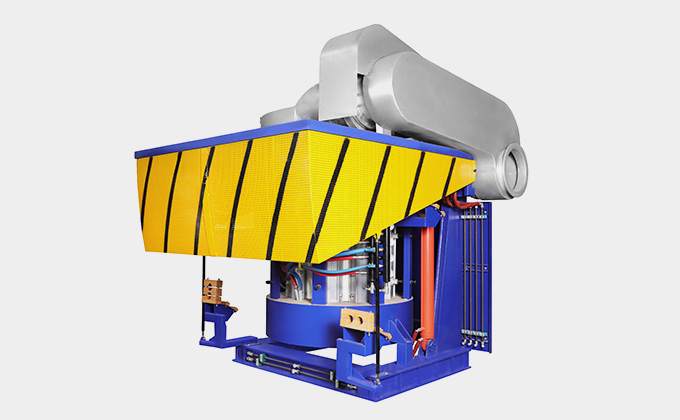

The steel shell induction melting furnace is composed of medium frequency power supply, compensation capacitor, steel shell furnace body, yoke, water-cooled cable, hydraulic station and tilting furnace control box.

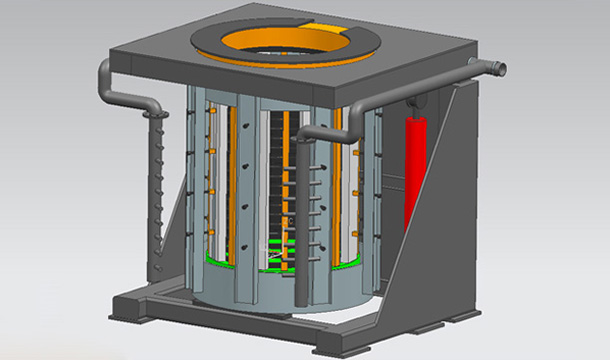

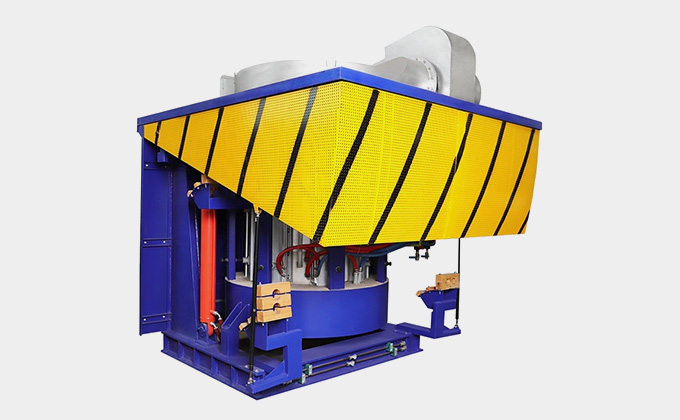

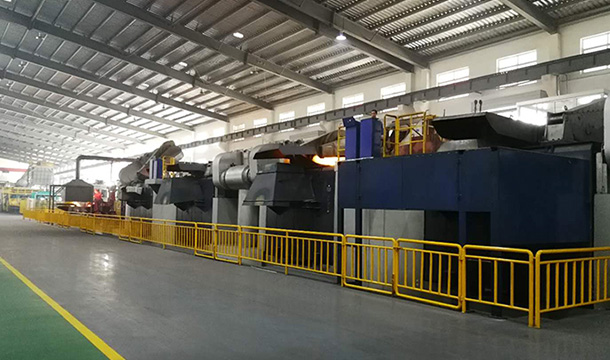

Steel Shell Furnace
The furnace body is welded with high-quality steel structure, which is safer, stronger and more durable; the open steel frame structure is easy for daily maintenance and repair.

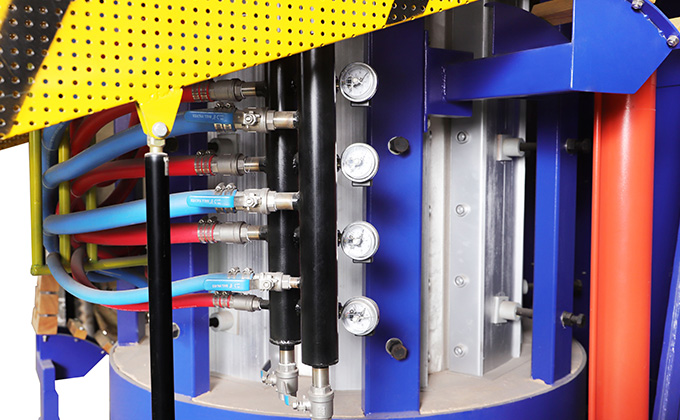

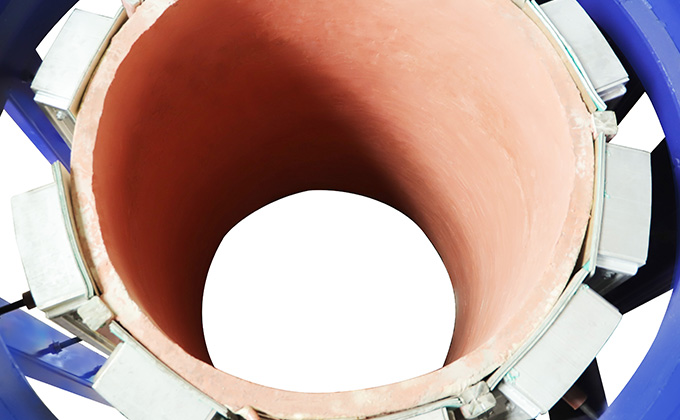

Induction Coil
The induction coil is composed of oxygen-free copper pipes, which is solid, durable and highly conductive. The induction coil is enclosed by a magnetic yoke, covering an area of more than 65%.

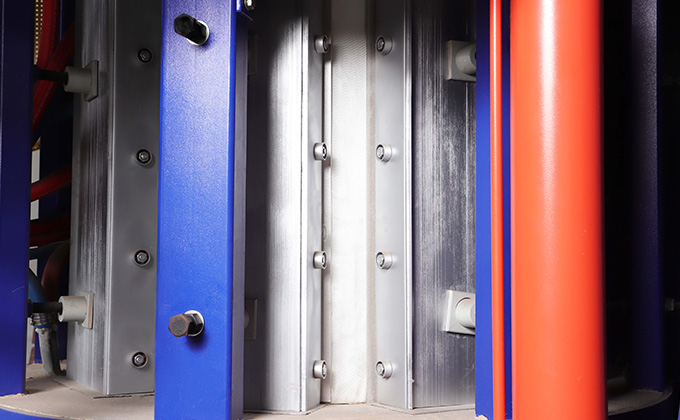

Magnetic Yoke
The yoke made of silicon steel sheet has a shielding effect on the magnetic lines of force generated by the induction coil, reduces the magnetic flux leakage, improves the thermal efficiency, and saves nearly 5% of the energy consumption than the aluminum shell furnace body.

Leak-Proof Furnace Alarm Device
Equipped with a leak-proof furnace alarm device. After the furnace is used for a certain level, the furnace wall will gradually become thinner. The current will change according to the change of the furnace wall. After the current change reaches the preset value, an alarm will be given in advance. The power supply is automatically cut off, and to ensure the safety of the operators.

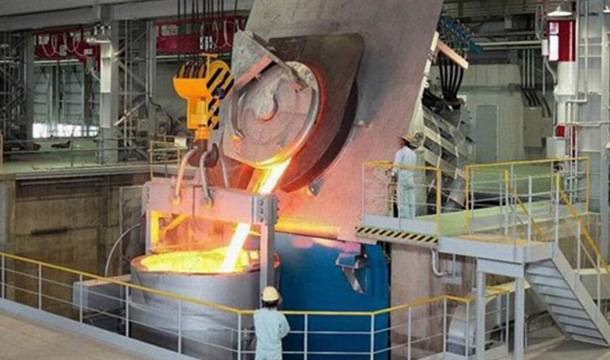

Tilting Furnace Hydraulic Cylinder System

The steel shell furnace uses hydraulic tilting furnace, which is safe and reliable. The hydraulic pump station is composed of hydraulic pump and drive motor, emergency pump, motor starting device, oil tank, oil return and suction filter device.

The furnace tilting console is used to control the tilting of the furnace body, and the tilting, stopping and resetting of the furnace body can be realized through the buttons and handles on the hydraulic operating console.

Eco-Friendly Equipment

Technical Specification:

Furnace Rated Capacity	Power Output	Frequency	Transformer	Power Frequency Voltage	Phase Pulse	Medium Frequency Voltage	Melting Capacity	Power Consumption
0.35T	250kW	1000Hz	1*250kVa	3*380V	3*6Pulse	750V	0.4T/H	750kWh/T
0.5T	300kW	1000Hz	1*315kVa	3*380V	3*6Pulse	1600V	0.6T/H	750kWh/T
0.75T	400kW	1000Hz	1*400kVa	3*380V	3*6Pulse	1600V	0.8T/H	700kWh/T
1T	700kW	1000Hz	1*800kVa	3*380V	3*6Pulse	1600V	1.3T/H	700kWh/T
2T	1500kW	700Hz	1*1600kVa	3*380V	3*6Pulse	2400V	2T/H	680kWh/T
3T	2000kW	500Hz	1*2500kVa	3*950V	3*6Pulse	2800V	3T/H	650kWh/T
5T	2500kW	450Hz	1*3150kVa	3*1250V	3*6Pulse	3400V	5T/H	650kWh/T
8T	5000kW	400Hz	1*6300kVa	6*1250V	6*12Pulse	3600V	8T/H	600kWh/T

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
