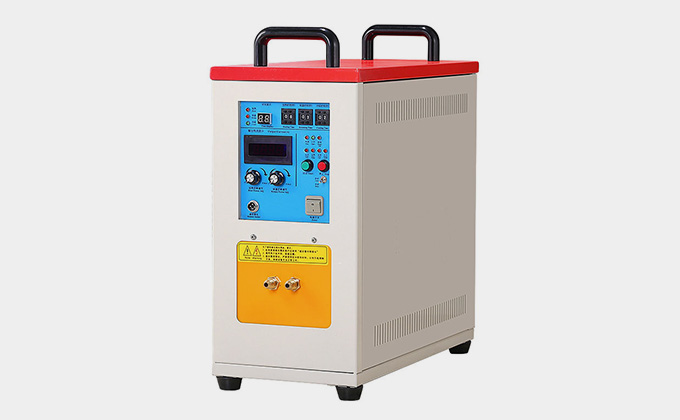

Precious Metals Melting Furnace

All Solid-State IGBT Drive Circuit

Induction melting furnace adopts IGBT frequency conversion and power regulation, is more integrated and miniaturized, with more than 95% effective output power, and can meet the requirements of 24-hour full-load continuous and repeatable operation.

The principle of induction melting

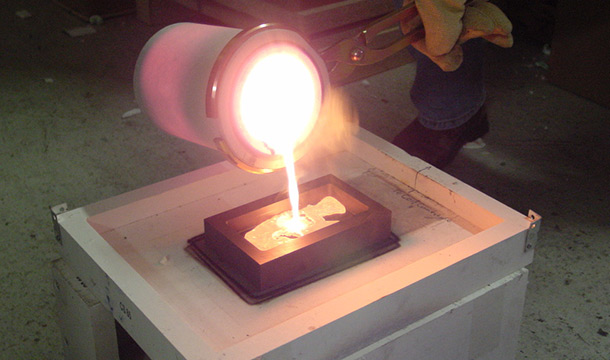

The metal in the crucible is heated by electromagnetic induction, the metal is instantly heated and melted into liquid, and then smelting, purifying, casting and other processes are carried out.

Electromagnetic stirring effect can ensure uniform temperature and structure of melting metal, less dross and impurities, even heating temperature, less burning loss and uniform metal composition.

All-Round Protection Function

High-frequency induction melting furnace is equipped with alarm devices for faults such as over voltage, over current, over hot, water shortage, etc., and automatic control and protection functions to ensure higher reliability and durability.

Wide range of metal melting.
High-frequency induction melting furnace can melt platinum, gold, silver, copper, steel, aluminum, activated carbon gold ash, gold dust, electrolytic copper, gold and silver powder, tin ash and slag, etc. It is an ideal equipment for university laboratories, research institutes, jewelry smithing and precision casting processing workshops.

Customized induction melting furnace

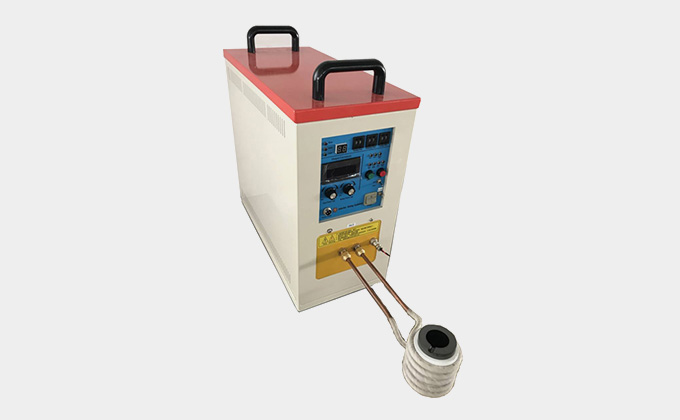

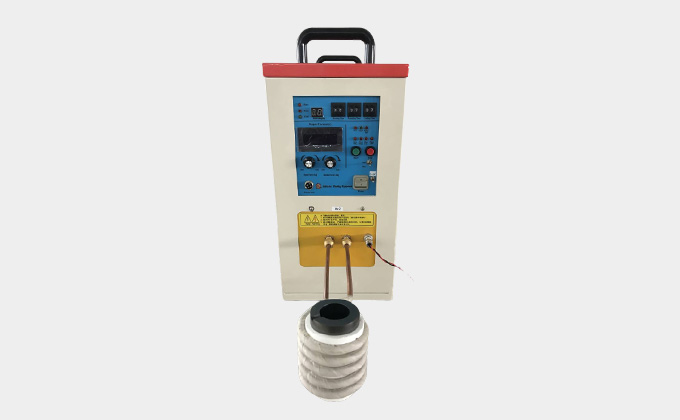

ROCHO INDUCTION can customize and design induction coils and matching capacitance boxes according to melting volume and specific requirements. For example: the 15KW melting furnace can melt 1 kg to 4 kg of precious metals at a time with melting time of 2 minutes to 10 minutes and highest temperature of 1500-2000 ℃.

Precise Temperature Control
The melting furnace allows to preset the heating power and time, and can be equipped with infrared thermometer to realize automatic control, improve heating quality, simplify manual operation and promote production efficiency.

Easy installation & operation
High-frequency induction melting furnace can ensure good casting quality, fast melting temperature rise, easy furnace temperature control, convenient crucible replacement, easy installation and operation.

Energy-saving and environment-friendly

High heating efficiency, replacing silicon-controlled, gas, acetylene, coke and electric furnace; low temperature around the furnace, less smoke and dust, and preferable working environment.

Applications:

ROCHO INDUCTION can design and customize precious metal melting furnace, it can meet your following operations:
Gold melting;
Silver melting
Platinum melting;
Silicon melting;
Zinc melting;
Tin ash and dross melting.
Electrolytic copper melting;
Gold ash and sand melting;
Small amount of steel and stainless steel melting.

Technical Specification:

Precious Metals Melting Furnace:

Power output	15KW	25KW
Power supply	1Phase*220 V 50/60HZ	3Phase*380 V 50/60HZ
Frequency range	30-100KHZ	30-80KHZ
Frequency output	200-600A	200-1200A
Weight	25KG	30KG
Dimensions	550220470mm	560220505mm
Max. gold, sliver, copper	2KG	4KG
Max. Steel	0.5KG	1KG
Max. Aluminum	0.5KG	1KG
Application	Melting gold, silver, copper, steel and stainless steel, aluminum, aluminum alloy.
Cooling way	Water cooling
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Protection function	over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Warranty	One year technical support and service

Melting Crucible (1-4kg):

Description	Model	Weight(g)	Size (mm)
Description	Model	Weight(g)	Φ1	Φ2	Φ3	H
1 kg graphite crucible	G.GM.1000A	155	58	35	47	88
1 kg ceramic shield	C.CC.1000A	170	70	51	59	89
2 kg graphite crucible	G.GM.2000A	245	65	44	57	110
2 kg ceramic shield	C.CC.2000A	270	84	61	70.5	112
2.5 kg graphite crucible	G.GM.2500A	290	65	44	57	126
2.5 kg ceramic shield	C.CC.2500A	320	84	61	71	127
3 kg graphite crucible	G.GM.3000A	385	85	60	75	105
3 kg ceramic shield	C.CC.3000A	335	97	79	89	103
4 kg graphite crucible	G.GM.4000A	465	85	60	76	131
4 kg ceramic shield	C.CC.4000A	370	100	80	90	132

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
